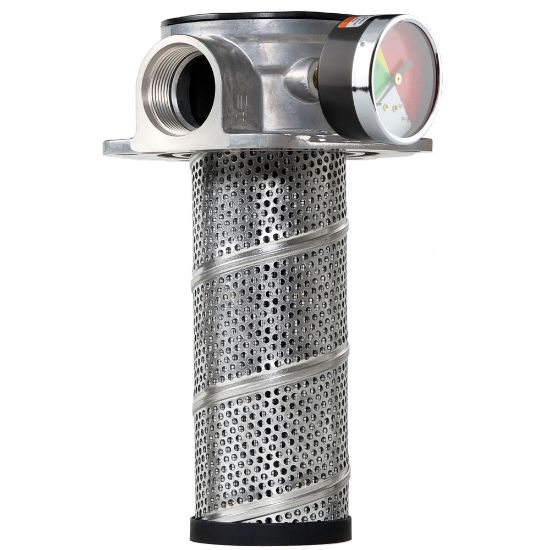

Low Pressure Tank Top Filters PT Series - PT4210QBGGS161

Parker’s PT Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/180 LPM depending on viscosity.

Availability:	Backordered
Partner Available:	Backordered

SKU: PT4210QBGGS161

$194.57

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Maximum Operating Temperature	107.0 °C
Flow Rate	189.3 L/min	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Indicator Pressure Setting	No indicator	Indicator Type	Pressure gauge, 25 psi
Housing Material	Aluminum	Pressure Rating	10.3 bar
Weight	0.98 kg	Options	Tank Mounted
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Bypass Valve Pressure Rating	25.0 psid
Filter Element Type	10Q Microglass	Compatible Element	936748
Mounting Style	Tank Mounted
Indicator Type	Pressure gauge, 25 psi	Port Connection Type	SAE-16
Filter Element Type	10Q Microglass	Options	None
Bypass Valve Pressure Rating	25 psid (1.7 bar)	Flow Rate	50 gpm (189.3 lpm)
Seal Material	Nitrile
