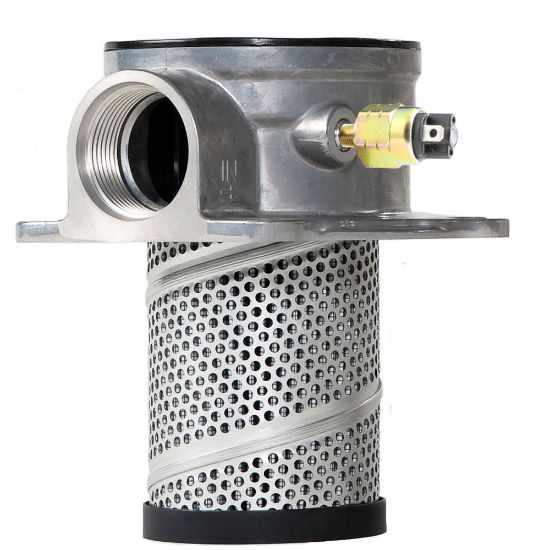

Low Pressure Tank Top Filters PT Series - PT4205QBSGS16W

Name: Low Pressure Tank Top Filters PT Series - PT4205QBSGS16W
SKU: PT4205QBSGS16W
Availability: OutOfStock

Parker’s PT Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/180 LPM depending on viscosity.

Availability:

Backordered

SKU: PT4205QBSGS16W

Qty:

Products specifications

Attribute name	Attribute value
Indicator Type	Pressure Switch	Mounting Style	Tank Mounted
Bypass Valve Pressure Rating	25.0 psid	Indicator Pressure Setting	Steel Weld Ring
Maximum Operating Temperature	225.0 °F	Compatible Element	936747
Seal Material	Nitrile	Weight	2.17 lb
Filter Element Type	05Q Microglass	Flow Rate	189.3 L/min
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Housing Material	Aluminum
Options	Tank Mounted	Pressure Rating	15 psi
Division	Engine Mobile Hydraulic and Fuel Filtration Division
Bypass Valve Pressure Rating	25 psid (1.7 bar)	Indicator Type	Pressure Switch
Seal Material	Nitrile	Options	Steel weld ring
Port Connection Type	SAE-16	Filter Element Type	05Q Microglass
Flow Rate	50 gpm (189.3 lpm)
