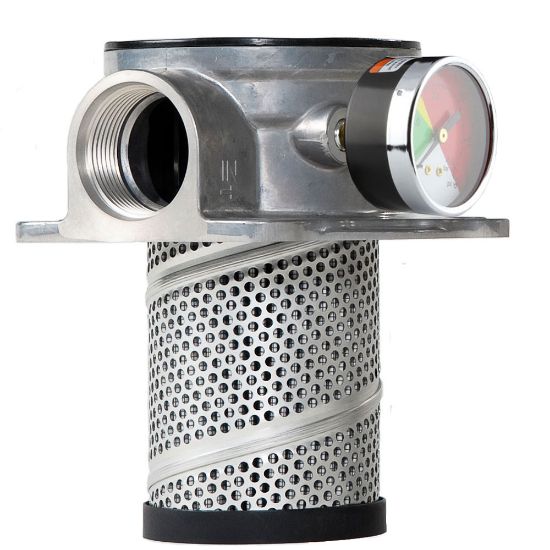

Low Pressure Tank Top Filters PT Series - PT4110QBGGN161

Name: Low Pressure Tank Top Filters PT Series - PT4110QBGGN161
SKU: PT4110QBGGN161
Availability: OutOfStock

Parker’s PT Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/180 LPM depending on viscosity.

Availability:

Backordered

SKU: PT4110QBGGN161

Qty:

Products specifications

Attribute name	Attribute value
Pressure Rating	10.3 bar	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Options	Tank Mounted	Bypass Valve Pressure Rating	25.0 psid
Weight	1.79 lb	Filter Element Type	10Q Microglass
Mounting Style	Tank Mounted	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Indicator Type	Pressure gauge, 25 psi	Housing Material	Aluminum
Indicator Pressure Setting	No indicator	Flow Rate	113.6 L/min
Maximum Operating Temperature	107.0 °C	Seal Material	Nitrile
Compatible Element	936744
Bypass Valve Pressure Rating	25 psid (1.7 bar)	Port Connection Type	1” NPT
Seal Material	Nitrile	Flow Rate	30 gpm (113.6 lpm)
Indicator Type	Pressure gauge, 25 psi	Filter Element Type	10Q Microglass
Options	None
