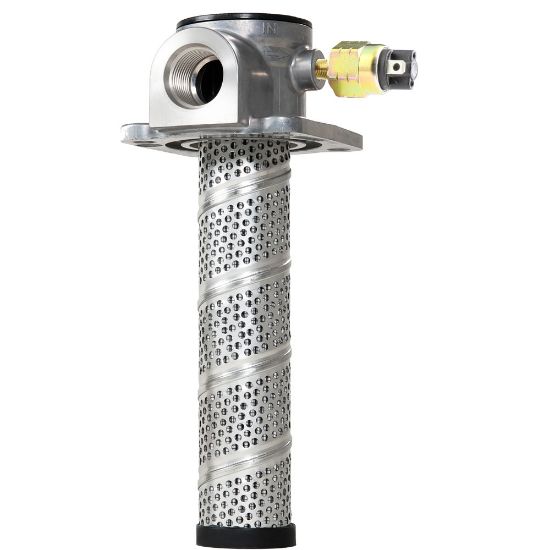

Low Pressure Tank Top Filters PT Series - PT2210QBSGS12W

Name: Low Pressure Tank Top Filters PT Series - PT2210QBSGS12W
SKU: PT2210QBSGS12W
Availability: OutOfStock

Parker’s PT Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/180 LPM depending on viscosity.

Availability:

Backordered

SKU: PT2210QBSGS12W

Qty:

Products specifications

Attribute name	Attribute value
Pressure Rating	15 psi	Housing Material	Aluminum
Weight	0.49 kg	Seal Material	Nitrile
Compatible Element	936756	Indicator Type	Pressure Switch
Options	Tank Mounted	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Filter Element Type	10Q Microglass	Maximum Operating Temperature	225.0 °F
Mounting Style	Tank Mounted	Bypass Valve Pressure Rating	1.7 bar
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Flow Rate	94.6 L/min
Indicator Pressure Setting	Steel Weld Ring
Port Connection Type	SAE-12	Bypass Valve Pressure Rating	25 psid (1.7 bar)
Seal Material	Nitrile	Options	Steel weld ring
Indicator Type	Pressure Switch	Flow Rate	25 gpm (94.6 lpm)
Filter Element Type	10Q Microglass
