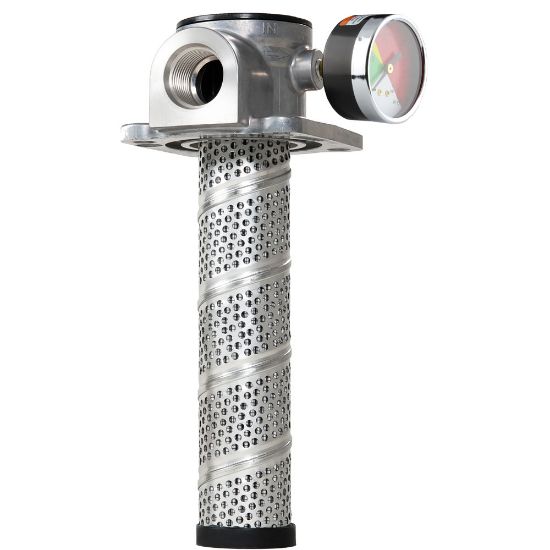

Low Pressure Tank Top Filters PT Series - PT2205QBGGS121

Parker’s PT Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/180 LPM depending on viscosity.

Availability:	Backordered
Partner Available:	11 in stock

SKU: PT2205QBGGS121

$174.00

Products specifications

Attribute name	Attribute value
Indicator Type	Pressure gauge, 25 psi	Housing Material	Aluminum
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Options	Tank Mounted
Indicator Pressure Setting	No indicator	Mounting Style	Tank Mounted
Weight	1.07 lb	Bypass Valve Pressure Rating	25.0 psid
Pressure Rating	10.3 bar	Compatible Element	936755
Maximum Operating Temperature	225.0 °F	Filter Element Type	05Q Microglass
Seal Material	Nitrile	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Flow Rate	94.6 L/min
Filter Element Type	05Q Microglass	Port Connection Type	SAE-12
Flow Rate	25 gpm (94.6 lpm)	Bypass Valve Pressure Rating	25 psid (1.7 bar)
Seal Material	Nitrile	Options	None
Indicator Type	Pressure gauge, 25 psi
