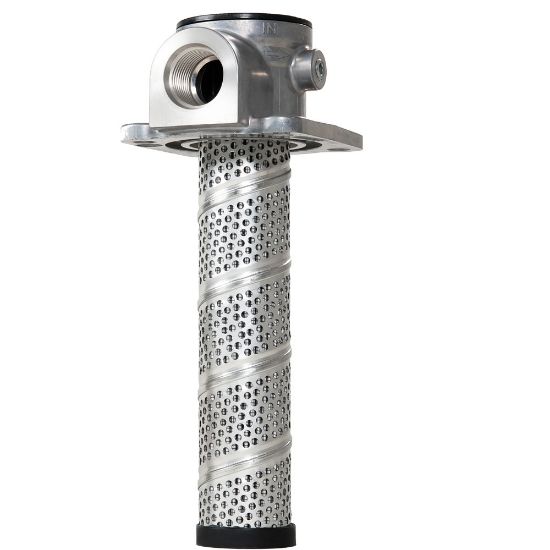

Low Pressure Tank Top Filters PT Series - PT2202QBPGS161

Name: Low Pressure Tank Top Filters PT Series - PT2202QBPGS161
SKU: PT2202QBPGS161
Availability: OutOfStock

Parker’s PT Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/180 LPM depending on viscosity.

Availability:

Backordered

SKU: PT2202QBPGS161

Qty:

Products specifications

Attribute name	Attribute value
Compatible Element	936754	Flow Rate	94.6 L/min
Weight	0.49 kg	Seal Material	Nitrile
Pressure Rating	10.3 bar	Bypass Valve Pressure Rating	25.0 psid
Indicator Pressure Setting	No indicator	Options	Tank Mounted
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Housing Material	Aluminum
Filter Element Type	02Q Microglass	Maximum Operating Temperature	225.0 °F
Mounting Style	Tank Mounted	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Indicator Type	Plugged ports
Options	None	Bypass Valve Pressure Rating	25 psid (1.7 bar)
Indicator Type	Plugged Ports	Flow Rate	25 gpm (94.6 lpm)
Seal Material	Nitrile	Filter Element Type	02Q Microglass
Port Connection Type	SAE-16
