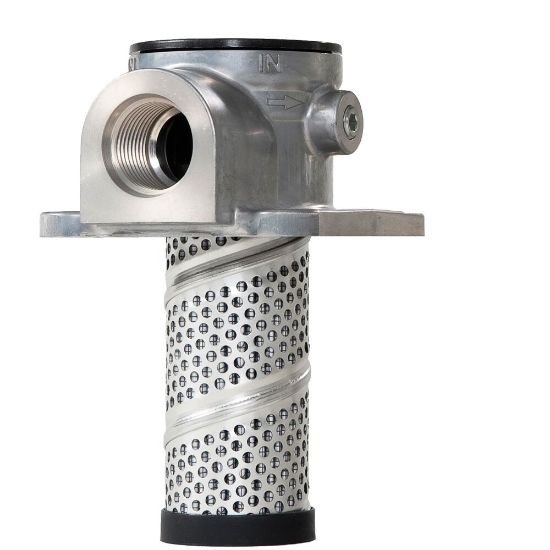

Low Pressure Tank Top Filters PT Series - PT2105QBPGS121

Name: Low Pressure Tank Top Filters PT Series - PT2105QBPGS121
SKU: PT2105QBPGS121
Availability: OutOfStock

Parker’s PT Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/180 LPM depending on viscosity.

Availability:

Backordered

SKU: PT2105QBPGS121

Qty:

Products specifications

Attribute name	Attribute value
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Housing Material	Aluminum
Indicator Pressure Setting	No indicator	Flow Rate	37.8 L/min
Options	Tank Mounted	Maximum Operating Temperature	225.0 °F
Bypass Valve Pressure Rating	1.7 bar	Mounting Style	Tank Mounted
Weight	0.36 kg	Compatible Element	936751
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Indicator Type	Plugged ports
Pressure Rating	15 psi	Filter Element Type	05Q Microglass
Seal Material	Nitrile
Indicator Type	Plugged Ports	Flow Rate	10 gpm (37.8 lpm)
Bypass Valve Pressure Rating	25 psid (1.7 bar)	Filter Element Type	05Q Microglass
Seal Material	Nitrile	Port Connection Type	SAE-12
Options	None
