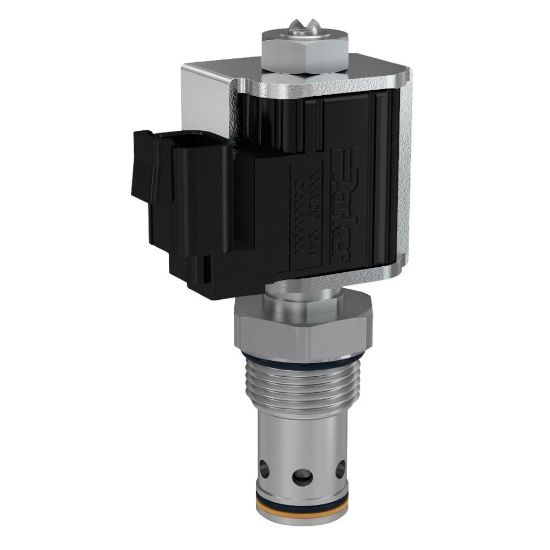

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Proportional Poppet Valves - FAP121CN

Name: Proportional Poppet Valves - FAP121CN
SKU: FAP121CN
Availability: OutOfStock

REGIONAL - Parker’s family of 2-way proportional poppet valves are available in normally-open or normally-closed configurations and are capable of flows up to 117 lpm (31 gpm) and pressures as high as 210 bar (3000 psi).

Availability:

Backordered

SKU: FAP121CN

Qty:

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Maximum Operating Pressure	3000 psi
Body Material	n/a	Division	Hydraulic Cartridge Systems Division
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Division	Hydraulic Systems Division
Minimum Operating Temperature	-34 °C	Weight	0.65 lb
Override Functionality	n/a	Maximum Inlet Pressure Rating	3000 psi
Actuation Type	Electrical	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Operating Temperature	+121 °C	Function	Proportional Flow Control/Regulator
Frequency	100-400 Hz	Configuration	Normally Closed
Flow Direction	Side to Nose (2 - 1)	Valve Material	All parts steel. All operating parts hardened steel
Operating Temperature	-30 to +250 °F	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Variation of Closing Point	N/A	Leak Rate	5 @ 3000 PSI (210 BAR) drops/min
Installation Torque	55 lb-ft	Flow Rate	21.5 Gal/min
Maximum Flow Rate	21.5 Gal/min	Cavity Size	C12-2F
Coil Type	5/8" Super Coil Low Watt (CAS)	Hysteresis	< 15%
Power Consumption	18 W	Coil Nut Tightening Torque	1.4 Nm
Variation of Opening Point	20-25% of Input Signal	Minimum Pressure Differential	21 bar
Seal Material	Nitrile	Configuration	Normally Closed
Maximum Flow Rate	21.5 GAL/MIN, 81.5 L/MIN
