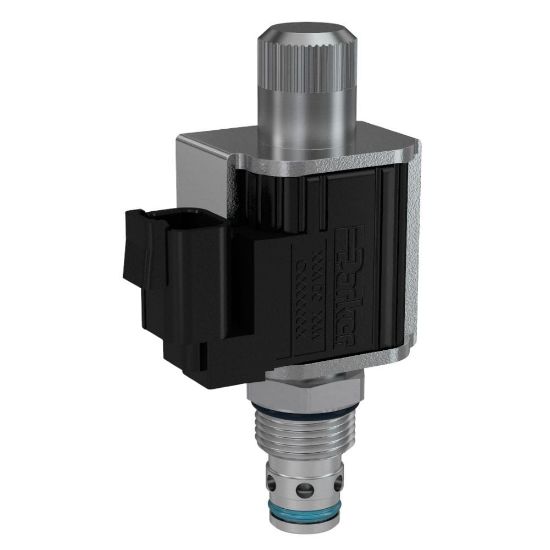

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Proportional Poppet Valves - FAP101N

Name: Proportional Poppet Valves - FAP101N
SKU: FAP101N
Availability: OutOfStock

REGIONAL - Parker’s family of 2-way proportional poppet valves are available in normally-open or normally-closed configurations and are capable of flows up to 117 lpm (31 gpm) and pressures as high as 210 bar (3000 psi).

Availability:

Backordered

SKU: FAP101N

Qty:

Products specifications

Attribute name	Attribute value
Weight	0.23 kg	Maximum Operating Pressure	210 bar
Body Material	n/a	Division	Hydraulic Cartridge Systems Division
Minimum Operating Temperature	-37 °C	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Division	Hydraulic Systems Division	Override Functionality	n/a
Flow Rate	55 L/min	Cavity Size	C10-2
Maximum Inlet Pressure Rating	3000 psi	Seal Material	D-Ring (Standard)
Actuation Type	Electrical	Installation Torque	34 Nm
Maximum Flow Rate	55 L/min	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Function	Proportional Flow Control/Regulator	Frequency	100-400 Hz
Configuration	Normally Open	Flow Direction	Side to Nose (2 - 1)
Valve Material	All parts steel. All operating parts hardened steel	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Variation of Opening Point	N/A	Leak Rate	5 @ 3000 PSI (210 BAR) drops/min
Operating Temperature	-35 to +200 °F	Maximum Operating Temperature	+93 °C
Coil Type	5/8" Super Coil Low Watt (CAS)	Hysteresis	< 15%
Power Consumption	18 W	Coil Nut Tightening Torque	1 lb-ft
Variation of Closing Point	60-65% of Input Signal	Minimum Pressure Differential	300 psi
Configuration	Normally Open	Seal Material	D-Ring (Standard)
Maximum Flow Rate	14.5 GAL/MIN, 55 L/MIN
