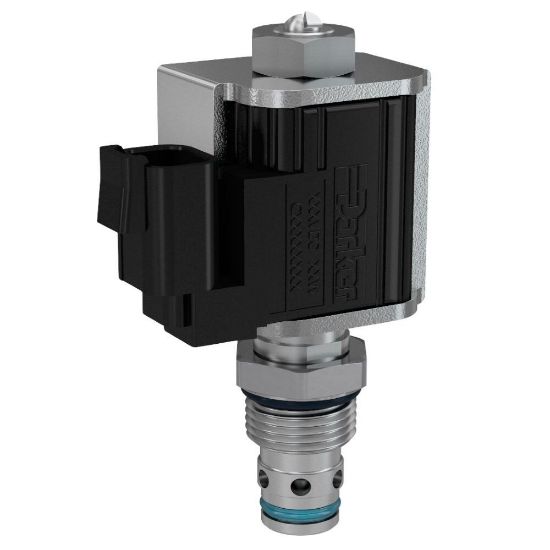

Proportional Poppet Valves - FAP101CN

Name: Proportional Poppet Valves - FAP101CN
SKU: FAP101CN
Availability: OutOfStock

REGIONAL - Parker’s family of 2-way proportional poppet valves are available in normally-open or normally-closed configurations and are capable of flows up to 117 lpm (31 gpm) and pressures as high as 210 bar (3000 psi).

Availability:

Backordered

SKU: FAP101CN

Qty:

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Maximum Operating Pressure	3000 psi
Body Material	n/a	Division	Hydraulic Cartridge Systems Division
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Division	Hydraulic Systems Division
Minimum Operating Temperature	-34 °C	Maximum Flow Rate	40 L/min
Override Functionality	n/a	Cavity Size	C10-2
Actuation Type	Electrical	Installation Torque	25 lb-ft
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Operating Temperature	+121 °C
Function	Proportional Flow Control/Regulator	Frequency	100-400 Hz
Configuration	Normally Closed	Flow Direction	Side to Nose (2 - 1)
Valve Material	All parts steel. All operating parts hardened steel	Operating Temperature	-30 to +250 °F
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Variation of Closing Point	N/A
Maximum Inlet Pressure Rating	210 bar	Leak Rate	5 @ 3000 PSI (210 BAR) drops/min
Weight	0.42 lb	Flow Rate	10.5 Gal/min
Coil Type	5/8" Super Coil Low Watt (CAS)	Hysteresis	< 15%
Power Consumption	18 W	Coil Nut Tightening Torque	1 lb-ft
Variation of Opening Point	20-25% of Input Signal	Minimum Pressure Differential	21 bar
Seal Material	Nitrile	Configuration	Normally Closed
Maximum Flow Rate	10.5 GAL/MIN, 40 L/MIN
