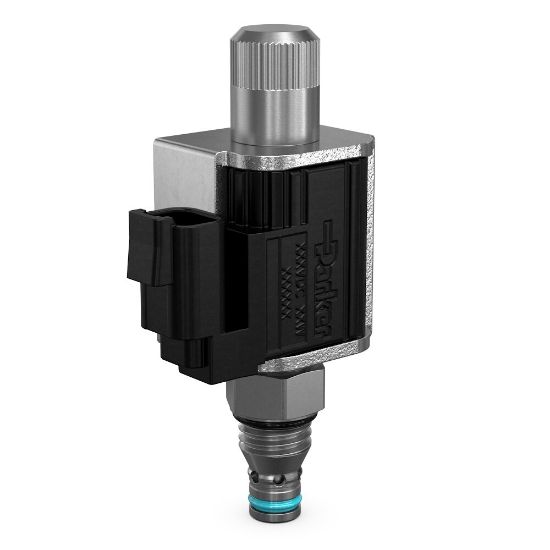

Proportional Poppet Valves - FAP081NV

Name: Proportional Poppet Valves - FAP081NV
SKU: FAP081NV
Availability: OutOfStock

REGIONAL - Parker’s family of 2-way proportional poppet valves are available in normally-open or normally-closed configurations and are capable of flows up to 117 lpm (31 gpm) and pressures as high as 210 bar (3000 psi).

Availability:

Backordered

SKU: FAP081NV

Qty:

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	210 bar	Seal Material	Fluorocarbon
Body Material	n/a	Division	Hydraulic Cartridge Systems Division
Minimum Operating Temperature	-15 °F	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Division	Hydraulic Systems Division	Weight	0.22 kg
Maximum Flow Rate	40 L/min	Override Functionality	n/a
Cavity Size	C08-2	Maximum Inlet Pressure Rating	3000 psi
Actuation Type	Electrical	Installation Torque	30 Nm
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Operating Temperature	+400 °F
Function	Proportional Flow Control/Regulator	Frequency	100-400 Hz
Configuration	Normally Open	Flow Direction	Side to Nose (2 - 1)
Valve Material	All parts steel. All operating parts hardened steel	Operating Temperature	-15 to +400 °F
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Variation of Opening Point	N/A
Leak Rate	5 @ 3000 PSI (210 BAR) drops/min	Flow Rate	10.5 Gal/min
Coil Type	5/8" Super Coil Low Watt (CAS)	Hysteresis	< 15%
Power Consumption	18 W	Coil Nut Tightening Torque	1.4 Nm
Variation of Closing Point	60-65% of Input Signal	Minimum Pressure Differential	21 bar
Seal Material	Fluorocarbon	Configuration	Normally Open
Maximum Flow Rate	10.5 GAL/MIN, 40 L/MIN
