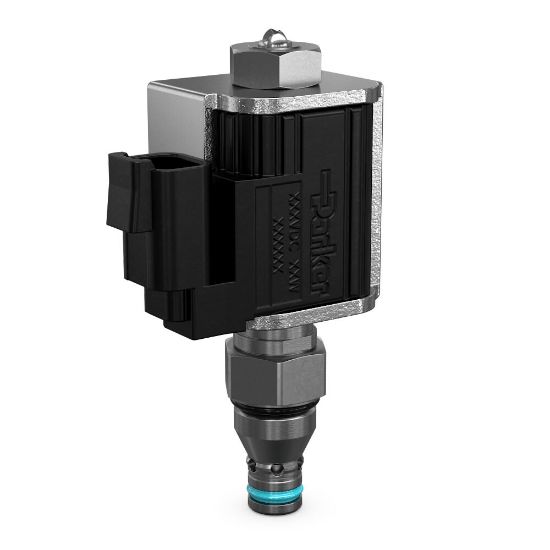

Proportional Poppet Valves - FAP081CN

Name: Proportional Poppet Valves - FAP081CN
SKU: FAP081CN
Availability: OutOfStock

REGIONAL - Parker’s family of 2-way proportional poppet valves are available in normally-open or normally-closed configurations and are capable of flows up to 117 lpm (31 gpm) and pressures as high as 210 bar (3000 psi).

Availability:

Backordered

SKU: FAP081CN

Qty:

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Maximum Operating Pressure	3000 psi
Maximum Flow Rate	27 L/min	Body Material	n/a
Division	Hydraulic Cartridge Systems Division	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Division	Hydraulic Systems Division	Minimum Operating Temperature	-30 °F
Weight	0.17 kg	Override Functionality	n/a
Cavity Size	C08-2	Actuation Type	Electrical
Installation Torque	30 Nm	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Operating Temperature	+250 °F	Function	Proportional Flow Control/Regulator
Frequency	100-400 Hz	Configuration	Normally Closed
Flow Direction	Side to Nose (2 - 1)	Valve Material	All parts steel. All operating parts hardened steel
Operating Temperature	-30 to +250 °F	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Variation of Closing Point	N/A	Maximum Inlet Pressure Rating	210 bar
Leak Rate	5 @ 3000 PSI (210 BAR) drops/min	Flow Rate	7 Gal/min
Coil Type	5/8" Super Coil Low Watt (CAS)	Hysteresis	< 15%
Power Consumption	18 W	Coil Nut Tightening Torque	1 lb-ft
Variation of Opening Point	20-25% of Input Signal	Minimum Pressure Differential	300 psi
Seal Material	Nitrile	Configuration	Normally Closed
Maximum Flow Rate	7 GAL/MIN, 27 L/MIN
