SHOP Hose

Parker hydraulic hose is well known for innovative designs that meet the most demanding applications for abrasion resistance and flexibility. The ParKrimp hose end fitting crimping system is often copied for its simplicity and ease of use. Don't forget the best air and general purpose hose on the market; Parker Push-Lok hose and Push-Lok hose fittings requiring no hose clamp.

Narrow Your Results

SELECTED FILTERS

Manually Selectedclear all

	Department: Hose & Fittings
	Product Type: Hose
	Product: 722TC Series

Automatically Selected

»	Trade Name: GlobalCore
»	Series: 722TC
»	Hose Pressure Range: High
»	Material: Rubber
»	Inch/Metric: Inch
»	Distinct Properties: Tough Cover Constant Pressure 4000 PSI
»	Application: Hydraulic
»	Working Pressure: 4,000 psi (28 MPa)
»	Working Pressure Range: 4000 to 4999 PSI (276 to 345 bar)
»	Inner Diameter Inch/mm: Inch
»	Mating End Fitting Series: 43
»	Operating Temperature: -40°F to +257°F (-40°C to +125°C)
»	Parker Division: Hose Products
»	Specification: ISO 18752
»	ISO 18752 Performance: CC

UN-SELECTED FILTERS

Inner Diameter

1 Inch 0.375 Inch 0.5 Inch 0.625 Inch 0.75 Inch

Minimum Bend Radius

2 1/2 Inch 3 1/2 Inch 4 3/4 Inch 4 Inch 6 Inch

Click Image to Zoom

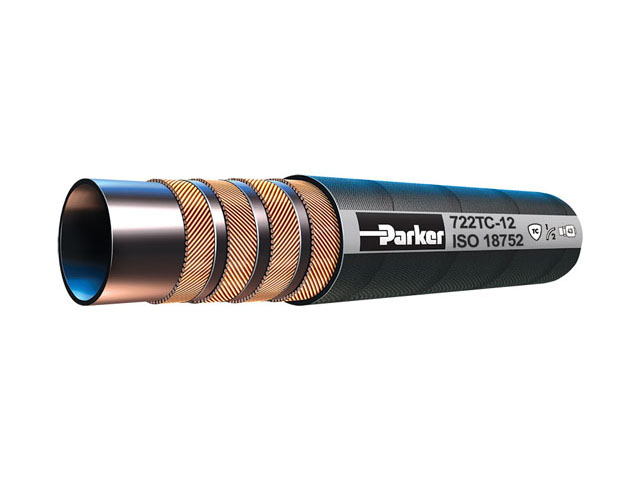

722TC Series

*Product image is representative provided by the manufacturer. Do not make buying decisions soley based on the image. Please verify specifications meet your requirements.

722TC Series

High Tough Cover Constant Pressure 4000 PSI Hydraulic Hose

Email this page to a friend

Bold items are most common and readily available.

Showing 1 - 5 of 5

	Part #	In-Stock	Price/UOM
+	722TC-10	126	$18.45
+	722TC-12	1111	$19.18
+	722TC-16	1569	$23.20
+	722TC-6	599	$13.78
+	722TC-8	1796	$17.64

Inner Diameter	Working Pressure	Material	Mating Fitting Series
0.625 Inch	4,000 psi (28 MPa)	Rubber	43
0.75 Inch	4,000 psi (28 MPa)	Rubber	43
1 Inch	4,000 psi (28 MPa)	Rubber	43
0.375 Inch	4,000 psi (28 MPa)	Rubber	43
0.5 Inch	4,000 psi (28 MPa)	Rubber	43

Parker’s GlobalCore 722TC hose provides 4,000 psi (28 MPa) constant working pressure in all sizes. 4-spiral construction for longer life in high-impulse, heavy-duty cycle applications. 450 times the abrasion resistance compared to standard rubber cover hose. ½ bend radius of 100R12 hose. Exceeds ISO 18752 performance specification.
