SHOP Hydraulic Cartridge Systems

Parker's Hydraulic Cartridge System's Division is the world leading manufacturer of hydraulic threaded cartridge valves for industrial and mobile integrated hydraulic systems.  PartsGopher features the highly available Winner's Circle offering of valves that you can receive from stock or short factory lead times.  Replacement solenoid coils are also available.
Narrow Your Results
Click Image to Zoom

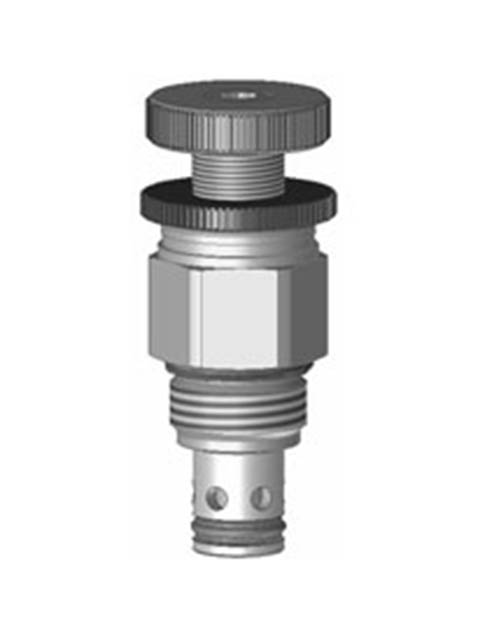

RAH081 Relief ValveRAH081 Relief Valve

RAH081 Relief Valve

Pilot Operated Relief Valve for Size 08, 2-way Cavity
Email this page to a friend


Bold items are most common and readily available.
Showing 1 - 16 of 16
UOM Rated Flow Leakage Max Pressure Seals Operating Temperature Pressure Range Adjustment Type Common Cavity Valve Body
EA 75.8 LPM (20 GPM) 5 cc per 100 PSI (6.8 Bar) setting 380 Bar (5500 PSI) “D”-Ring -45C to +93.3C (-50F to +200F) 6.9 - 69 Bar (100 - 1000 PSI) Knob Size 08, 2-way B08-2
EA 75.8 LPM (20 GPM) 5 cc per 100 PSI (6.8 Bar) setting 380 Bar (5500 PSI) Fluorocarbon -31.7C to +121.1C (-25F to +250F) 6.9 - 69 Bar (100 - 1000 PSI) Knob Size 08, 2-way B08-2
EA 75.8 LPM (20 GPM) 5 cc per 100 PSI (6.8 Bar) setting 380 Bar (5500 PSI) “D”-Ring -45C to +93.3C (-50F to +200F) 6.9 - 69 Bar (100 - 1000 PSI) Screw Size 08, 2-way B08-2
EA 75.8 LPM (20 GPM) 5 cc per 100 PSI (6.8 Bar) setting 380 Bar (5500 PSI) Fluorocarbon -31.7C to +121.1C (-25F to +250F) 6.9 - 69 Bar (100 - 1000 PSI) Screw Size 08, 2-way B08-2
EA 75.8 LPM (20 GPM) 5 cc per 100 PSI (6.8 Bar) setting 380 Bar (5500 PSI) “D”-Ring -45C to +93.3C (-50F to +200F) 6.9 - 138 Bar (100 - 2000 PSI) Knob Size 08, 2-way B08-2
EA 75.8 LPM (20 GPM) 5 cc per 100 PSI (6.8 Bar) setting 380 Bar (5500 PSI) Fluorocarbon -31.7C to +121.1C (-25F to +250F) 6.9 - 138 Bar (100 - 2000 PSI) Knob Size 08, 2-way B08-2
EA 75.8 LPM (20 GPM) 5 cc per 100 PSI (6.8 Bar) setting 380 Bar (5500 PSI) “D”-Ring -45C to +93.3C (-50F to +200F) 6.9 - 138 Bar (100 - 2000 PSI) Screw Size 08, 2-way B08-2
EA 75.8 LPM (20 GPM) 5 cc per 100 PSI (6.8 Bar) setting 380 Bar (5500 PSI) Fluorocarbon -31.7C to +121.1C (-25F to +250F) 6.9 - 138 Bar (100 - 2000 PSI) Screw Size 08, 2-way B08-2
EA 75.8 LPM (20 GPM) 5 cc per 100 PSI (6.8 Bar) setting 380 Bar (5500 PSI) “D”-Ring -45C to +93.3C (-50F to +200F) 13.8 - 207 Bar (200 - 3000 PSI) Knob Size 08, 2-way B08-2
EA 75.8 LPM (20 GPM) 5 cc per 100 PSI (6.8 Bar) setting 380 Bar (5500 PSI) Fluorocarbon -31.7C to +121.1C (-25F to +250F) 13.8 - 207 Bar (200 - 3000 PSI) Knob Size 08, 2-way B08-2
EA 75.8 LPM (20 GPM) 5 cc per 100 PSI (6.8 Bar) setting 380 Bar (5500 PSI) “D”-Ring -45C to +93.3C (-50F to +200F) 13.8 - 207 Bar (200 - 3000 PSI) Screw Size 08, 2-way B08-2
EA 75.8 LPM (20 GPM) 5 cc per 100 PSI (6.8 Bar) setting 380 Bar (5500 PSI) Fluorocarbon -31.7C to +121.1C (-25F to +250F) 13.8 - 207 Bar (200 - 3000 PSI) Screw Size 08, 2-way B08-2
EA 75.8 LPM (20 GPM) 5 cc per 100 PSI (6.8 Bar) setting 380 Bar (5500 PSI) “D”-Ring -45C to +93.3C (-50F to +200F) 13.8 - 345 Bar (200 - 5000 PSI) Knob Size 08, 2-way B08-2
EA 75.8 LPM (20 GPM) 5 cc per 100 PSI (6.8 Bar) setting 380 Bar (5500 PSI) Fluorocarbon -31.7C to +121.1C (-25F to +250F) 13.8 - 345 Bar (200 - 5000 PSI) Knob Size 08, 2-way B08-2
EA 75.8 LPM (20 GPM) 5 cc per 100 PSI (6.8 Bar) setting 380 Bar (5500 PSI) “D”-Ring -45C to +93.3C (-50F to +200F) 13.8 - 345 Bar (200 - 5000 PSI) Screw Size 08, 2-way B08-2
EA 75.8 LPM (20 GPM) 5 cc per 100 PSI (6.8 Bar) setting 380 Bar (5500 PSI) Fluorocarbon -31.7C to +121.1C (-25F to +250F) 13.8 - 345 Bar (200 - 5000 PSI) Screw Size 08, 2-way B08-2
RAH081 Series Relief Valve - Pilot Operated
