| » | Series: WPF3 |
| » | Filter Type: High Pressure Filter |
| » | Element Length: Single |
| » | Bypass: 50 PSI (3.5 bar) |
| » | Max Pressure - Fatigue MAOP: 6000 PSI (414 bar) |
| » | Max Pressure - Non-Fatigue MAOP: 7000 PSI (483 bar) |
| » | Operating Temperature: -15F to 250F (-26C to 121C) |
| » | Parker Division: Hydraulic Filter |
| » | Seals: Fluorocarbon |
UN-SELECTED FILTERS
Nominal Filter Micron Rating
Filter Media Type
Port Type
Nominal Flow Rating
Click Image to Zoom
*Product image is representative provided by the manufacturer. Do not make buying decisions soley based on the image. Please verify specifications meet your requirements.

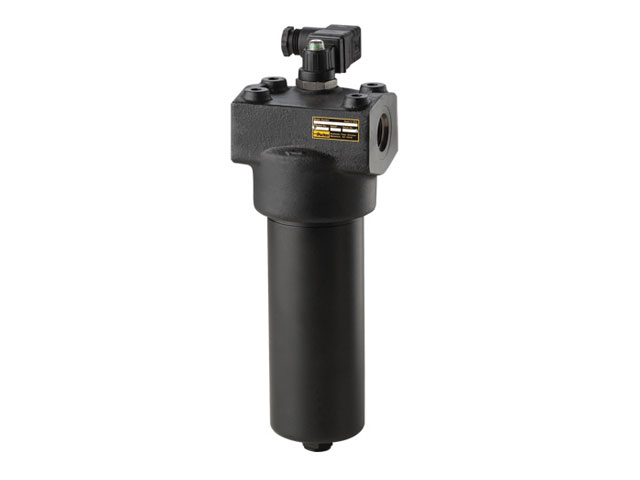

WPF3 Series High Pressure Filter
WPF3 Series Hydraulic and Lube Oil High Pressure FilterEmail this page to a friend
Recipient email address: Your name:
| UOM | Element Length | Nominal Filter Rating | Port | Nominal Flow Rating | Indicator Type | Bypass | Options | Max Pressure - Fatigue MAOP | Max Pressure - Non-Fatigue MAOP | Seals | Operating Temperature | Replacement Element |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EA | Single | 2 micron | 16 SAE | 45 GPM (171 LPM) | Plugged Indicator | 50 PSI (3.5 bar) | No Option | 6000 psi (414 bar) | 7000 psi (483 bar) | Fluorocarbon | -15F to 250F (-26C to 121C) | 941035Q |
| EA | Single | 2 micron | 16 SAE | 45 GPM (171 LPM) | Visual - Automatic Reset | 50 PSI (3.5 bar) | No Option | 6000 psi (414 bar) | 7000 psi (483 bar) | Fluorocarbon | -15F to 250F (-26C to 121C) | 941035Q |
| EA | Single | 2 micron | 16 SAE | 45 GPM (171 LPM) | Electrical/Visual (DIN-43650 Connection) | 50 PSI (3.5 bar) | No Option | 6000 psi (414 bar) | 7000 psi (483 bar) | Fluorocarbon | -15F to 250F (-26C to 121C) | 941035Q |
| EA | Single | 5 micron | 16 SAE | 45 GPM (171 LPM) | Plugged Indicator | 50 PSI (3.5 bar) | No Option | 6000 psi (414 bar) | 7000 psi (483 bar) | Fluorocarbon | -15F to 250F (-26C to 121C) | 941036Q |
| EA | Single | 5 micron | 16 SAE | 45 GPM (171 LPM) | Visual - Automatic Reset | 50 PSI (3.5 bar) | No Option | 6000 psi (414 bar) | 7000 psi (483 bar) | Fluorocarbon | -15F to 250F (-26C to 121C) | 941036Q |
| EA | Single | 5 micron | 16 SAE | 45 GPM (171 LPM) | Electrical/Visual (DIN-43650 Connection) | 50 PSI (3.5 bar) | No Option | 6000 psi (414 bar) | 7000 psi (483 bar) | Fluorocarbon | -15F to 250F (-26C to 121C) | 941036Q |
| EA | Single | 10 micron | 16 SAE | 45 GPM (171 LPM) | Plugged Indicator | 50 PSI (3.5 bar) | No Option | 6000 psi (414 bar) | 7000 psi (483 bar) | Fluorocarbon | -15F to 250F (-26C to 121C) | 941037Q |
| EA | Single | 10 micron | 16 SAE | 45 GPM (171 LPM) | Visual - Automatic Reset | 50 PSI (3.5 bar) | No Option | 6000 psi (414 bar) | 7000 psi (483 bar) | Fluorocarbon | -15F to 250F (-26C to 121C) | 941037Q |
| EA | Single | 10 micron | 16 SAE | 45 GPM (171 LPM) | Electrical/Visual (DIN-43650 Connection) | 50 PSI (3.5 bar) | No Option | 6000 psi (414 bar) | 7000 psi (483 bar) | Fluorocarbon | -15F to 250F (-26C to 121C) | 941037Q |
| EA | Single | 2 micron (2000 PSID High Collapse) | 16 SAE | 45 GPM (171 LPM) | Plugged Indicator | 50 PSI (3.5 bar) | No Bypass | 6000 psi (414 bar) | 7000 psi (483 bar) | Fluorocarbon | -15F to 250F (-26C to 121C) | 941048Q |
| EA | Single | 2 micron (2000 PSID High Collapse) | 16 SAE | 45 GPM (171 LPM) | Visual - Automatic Reset | 50 PSI (3.5 bar) | No Bypass | 6000 psi (414 bar) | 7000 psi (483 bar) | Fluorocarbon | -15F to 250F (-26C to 121C) | 941048Q |
| EA | Single | 2 micron (2000 PSID High Collapse) | 16 SAE | 45 GPM (171 LPM) | Electrical/Visual (DIN-43650 Connection) | 50 PSI (3.5 bar) | No Bypass | 6000 psi (414 bar) | 7000 psi (483 bar) | Fluorocarbon | -15F to 250F (-26C to 121C) | 941048Q |
| EA | Single | 10 micron (2000 PSID High Collapse) | 16 SAE | 45 GPM (171 LPM) | Plugged Indicator | 50 PSI (3.5 bar) | No Bypass | 6000 psi (414 bar) | 7000 psi (483 bar) | Fluorocarbon | -15F to 250F (-26C to 121C) | 941049Q |
| EA | Single | 10 micron (2000 PSID High Collapse) | 16 SAE | 45 GPM (171 LPM) | Visual - Automatic Reset | 50 PSI (3.5 bar) | No Bypass | 6000 psi (414 bar) | 7000 psi (483 bar) | Fluorocarbon | -15F to 250F (-26C to 121C) | 941049Q |
| EA | Single | 10 micron (2000 PSID High Collapse) | 16 SAE | 45 GPM (171 LPM) | Electrical/Visual (DIN-43650 Connection) | 50 PSI (3.5 bar) | No Bypass | 6000 psi (414 bar) | 7000 psi (483 bar) | Fluorocarbon | -15F to 250F (-26C to 121C) | 941049Q |
| EA | Single | 2 micron | 1 Flange face - SAE Code 62 | 45 GPM (171 LPM) | Plugged Indicator | 50 PSI (3.5 bar) | No Option | 6000 psi (414 bar) | 7000 psi (483 bar) | Fluorocarbon | -15F to 250F (-26C to 121C) | 941035Q |
| EA | Single | 2 micron | 1 Flange face - SAE Code 62 | 45 GPM (171 LPM) | Visual - Automatic Reset | 50 PSI (3.5 bar) | No Option | 6000 psi (414 bar) | 7000 psi (483 bar) | Fluorocarbon | -15F to 250F (-26C to 121C) | 941035Q |
| EA | Single | 2 micron | 1 Flange face - SAE Code 62 | 45 GPM (171 LPM) | Electrical/Visual (DIN-43650 Connection) | 50 PSI (3.5 bar) | No Option | 6000 psi (414 bar) | 7000 psi (483 bar) | Fluorocarbon | -15F to 250F (-26C to 121C) | 941035Q |
| EA | Single | 5 micron | 1 Flange face - SAE Code 62 | 45 GPM (171 LPM) | Plugged Indicator | 50 PSI (3.5 bar) | No Option | 6000 psi (414 bar) | 7000 psi (483 bar) | Fluorocarbon | -15F to 250F (-26C to 121C) | 941036Q |
| EA | Single | 5 micron | 1 Flange face - SAE Code 62 | 45 GPM (171 LPM) | Visual - Automatic Reset | 50 PSI (3.5 bar) | No Option | 6000 psi (414 bar) | 7000 psi (483 bar) | Fluorocarbon | -15F to 250F (-26C to 121C) | 941036Q |
WPF3 Series Hydraulic and Lube Oil High Pressure Filter
