| » | Series: 12CS |
| » | Filter Type: Medium Pressure Filter |
| » | Element Length: Double |
| » | Filter Media Type: Ecoglass III |
| » | Nominal Flow Rating: 15 GPM (57 LPM) |
| » | Bypass: 25 PSI (1.7 bar) |
| » | Max Pressure - Fatigue MAOP: 400 PSI (27.6 bar) |
| » | Max Pressure - Non-Fatigue MAOP: 500 PSI (34.5 bar) |
| » | Operating Temperature: -40F to 225F (-40C to 107C) |
| » | Options: No Option |
| » | Parker Division: Hydraulic Filter |
| » | Seals: Nitrile |
UN-SELECTED FILTERS

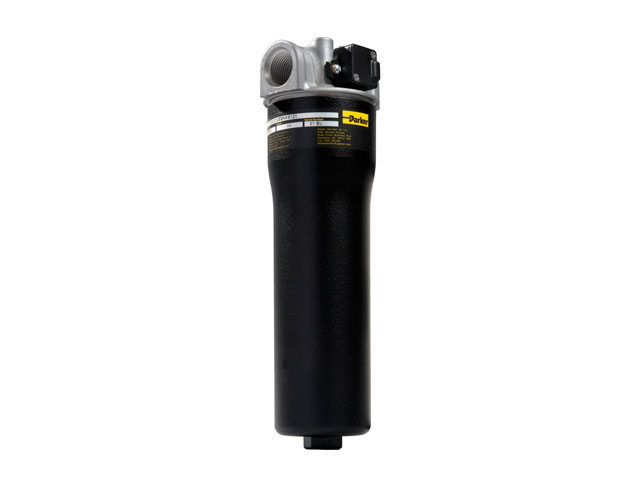

Click Image to Zoom
*Product image is representative provided by the manufacturer. Do not make buying decisions soley based on the image. Please verify specifications meet your requirements.
12CS Series Medium Pressure Filter
12CS Series Hydraulic and Lube Oil Medium Pressure FilterEmail this page to a friend
Recipient email address: Your name:
| UOM | Element Length | Nominal Filter Rating | Port | Nominal Flow Rating | Indicator Type | Bypass | Options | Max Pressure - Fatigue MAOP | Max Pressure - Non-Fatigue MAOP | Seals | Operating Temperature | Replacement Element |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EA | Double | 2 micron | 3/4 NPT | 15 GPM (57 LPM) | Electrical (12” Flying Leads, Left) | 25 PSI (1.7 bar) | No Option | 400 PSI (27.6 Bar) | 500 PSI (34.5 bar) | Nitrile | -40F to 225F (-40C to 107C) | 940765Q |
| EA | Double | 2 micron | 3/4 NPT | 15 GPM (57 LPM) | Visual indicator - Push to Test, Left | 25 PSI (1.7 bar) | No Option | 400 PSI (27.6 Bar) | 500 PSI (34.5 bar) | Nitrile | -40F to 225F (-40C to 107C) | 940765Q |
| EA | Double | 2 micron | 3/4 NPT | 15 GPM (57 LPM) | No Indicator | 25 PSI (1.7 bar) | No Option | 400 PSI (27.6 Bar) | 500 PSI (34.5 bar) | Nitrile | -40F to 225F (-40C to 107C) | 940765Q |
| EA | Double | 5 micron | 3/4 NPT | 15 GPM (57 LPM) | Electrical (12” Flying Leads, Left) | 25 PSI (1.7 bar) | No Option | 400 PSI (27.6 Bar) | 500 PSI (34.5 bar) | Nitrile | -40F to 225F (-40C to 107C) | 940764Q |
| EA | Double | 5 micron | 3/4 NPT | 15 GPM (57 LPM) | Visual indicator - Push to Test, Left | 25 PSI (1.7 bar) | No Option | 400 PSI (27.6 Bar) | 500 PSI (34.5 bar) | Nitrile | -40F to 225F (-40C to 107C) | 940764Q |
| EA | Double | 5 micron | 3/4 NPT | 15 GPM (57 LPM) | No Indicator | 25 PSI (1.7 bar) | No Option | 400 PSI (27.6 Bar) | 500 PSI (34.5 bar) | Nitrile | -40F to 225F (-40C to 107C) | 940764Q |
| EA | Double | 10 micron | 3/4 NPT | 15 GPM (57 LPM) | Electrical (12” Flying Leads, Left) | 25 PSI (1.7 bar) | No Option | 400 PSI (27.6 Bar) | 500 PSI (34.5 bar) | Nitrile | -40F to 225F (-40C to 107C) | 940763Q |
| EA | Double | 10 micron | 3/4 NPT | 15 GPM (57 LPM) | Visual indicator - Push to Test, Left | 25 PSI (1.7 bar) | No Option | 400 PSI (27.6 Bar) | 500 PSI (34.5 bar) | Nitrile | -40F to 225F (-40C to 107C) | 940763Q |
| EA | Double | 10 micron | 3/4 NPT | 15 GPM (57 LPM) | No Indicator | 25 PSI (1.7 bar) | No Option | 400 PSI (27.6 Bar) | 500 PSI (34.5 bar) | Nitrile | -40F to 225F (-40C to 107C) | 940763Q |
| EA | Double | 20 micron | 3/4 NPT | 15 GPM (57 LPM) | Electrical (12” Flying Leads, Left) | 25 PSI (1.7 bar) | No Option | 400 PSI (27.6 Bar) | 500 PSI (34.5 bar) | Nitrile | -40F to 225F (-40C to 107C) | 940762Q |
| EA | Double | 20 micron | 3/4 NPT | 15 GPM (57 LPM) | Visual indicator - Push to Test, Left | 25 PSI (1.7 bar) | No Option | 400 PSI (27.6 Bar) | 500 PSI (34.5 bar) | Nitrile | -40F to 225F (-40C to 107C) | 940762Q |
| EA | Double | 20 micron | 3/4 NPT | 15 GPM (57 LPM) | No Indicator | 25 PSI (1.7 bar) | No Option | 400 PSI (27.6 Bar) | 500 PSI (34.5 bar) | Nitrile | -40F to 225F (-40C to 107C) | 940762Q |
| EA | Double | 2 micron | 12 SAE | 15 GPM (57 LPM) | Electrical (12” Flying Leads, Left) | 25 PSI (1.7 bar) | No Option | 400 PSI (27.6 Bar) | 500 PSI (34.5 bar) | Nitrile | -40F to 225F (-40C to 107C) | 940765Q |
| EA | Double | 2 micron | 12 SAE | 15 GPM (57 LPM) | Visual indicator - Push to Test, Left | 25 PSI (1.7 bar) | No Option | 400 PSI (27.6 Bar) | 500 PSI (34.5 bar) | Nitrile | -40F to 225F (-40C to 107C) | 940765Q |
| EA | Double | 2 micron | 12 SAE | 15 GPM (57 LPM) | No Indicator | 25 PSI (1.7 bar) | No Option | 400 PSI (27.6 Bar) | 500 PSI (34.5 bar) | Nitrile | -40F to 225F (-40C to 107C) | 940765Q |
| EA | Double | 5 micron | 12 SAE | 15 GPM (57 LPM) | Electrical (12” Flying Leads, Left) | 25 PSI (1.7 bar) | No Option | 400 PSI (27.6 Bar) | 500 PSI (34.5 bar) | Nitrile | -40F to 225F (-40C to 107C) | 940764Q |
| EA | Double | 5 micron | 12 SAE | 15 GPM (57 LPM) | Visual indicator - Push to Test, Left | 25 PSI (1.7 bar) | No Option | 400 PSI (27.6 Bar) | 500 PSI (34.5 bar) | Nitrile | -40F to 225F (-40C to 107C) | 940764Q |
| EA | Double | 5 micron | 12 SAE | 15 GPM (57 LPM) | No Indicator | 25 PSI (1.7 bar) | No Option | 400 PSI (27.6 Bar) | 500 PSI (34.5 bar) | Nitrile | -40F to 225F (-40C to 107C) | 940764Q |
| EA | Double | 10 micron | 12 SAE | 15 GPM (57 LPM) | Electrical (12” Flying Leads, Left) | 25 PSI (1.7 bar) | No Option | 400 PSI (27.6 Bar) | 500 PSI (34.5 bar) | Nitrile | -40F to 225F (-40C to 107C) | 940763Q |
| EA | Double | 10 micron | 12 SAE | 15 GPM (57 LPM) | Visual indicator - Push to Test, Left | 25 PSI (1.7 bar) | No Option | 400 PSI (27.6 Bar) | 500 PSI (34.5 bar) | Nitrile | -40F to 225F (-40C to 107C) | 940763Q |
12CS Series Hydraulic and Lube Oil Medium Pressure Filter
