SHOP Tubing
Parker tubing from Parflex Division is available in a very wide variety of materials, colors in inch and metric sizes. Nylon, polyethylene, polypropylene, polyurethane, urethane and vinyl to name a few. A perfect match for Parker's Prestolok push-to-connect instant tubing fittings and valves.
Narrow Your Results
SELECTED FILTERS
Manually Selectedclear all
Automatically Selected
| » | Trade Name: Parflex |
| » | Series: U |
| » | Material: Polyurethane |
| » | Inch/Metric: Inch |
| » | Distinct Properties: Medium Durometer |
| » | Application: Pneumatic |
| » | Inner Diameter Inch/mm: Inch |
| » | Outer Diameter Inch/mm: Inch |
| » | Parker Division: Parflex |
| » | Wall Thickness Inch/mm: Inch |
UN-SELECTED FILTERS
Max Pressure Range
Click Image to Zoom
*Product image is representative provided by the manufacturer. Do not make buying decisions soley based on the image. Please verify specifications meet your requirements.

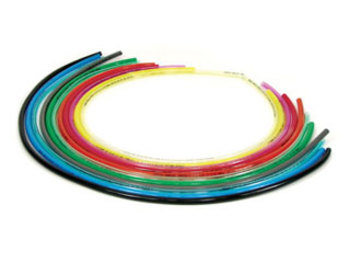

U Series Polyurethane
Parflex Medium Durometer Polyether Base for Pneumatic ApplicationsEmail this page to a friend
Recipient email address: Your name:
| UOM | Outer Diameter 1 | Inner Diameter | Wall Thickness | Color | Max Pressure | Material |
|---|---|---|---|---|---|---|
| FT | 3/4 Inch | 0.5 Inch | 0.125 Inch | Natural | 125 PSI (9 bar) | Polyurethane |
| FT | 3/4 Inch | 0.5 Inch | 0.125 Inch | Black | 125 PSI (9 bar) | Polyurethane |
| FT | 1/8 Inch | 0.063 Inch | 0.03125 Inch | Natural | 125 PSI (9 bar) | Polyurethane |
| FT | 1/8 Inch | 0.063 Inch | 0.03125 Inch | Natural | 125 PSI (9 bar) | Polyurethane |
| FT | 1/8 Inch | 0.063 Inch | 0.03125 Inch | Natural | 125 PSI (9 bar) | Polyurethane |
| FT | 1/8 Inch | 0.063 Inch | 0.03125 Inch | Black | 125 PSI (9 bar) | Polyurethane |
| FT | 1/8 Inch | 0.063 Inch | 0.03125 Inch | Black | 125 PSI (9 bar) | Polyurethane |
| FT | 1/8 Inch | 0.063 Inch | 0.03125 Inch | Blue | 125 PSI (9 bar) | Polyurethane |
| FT | 1/8 Inch | 0.063 Inch | 0.03125 Inch | Blue | 125 PSI (9 bar) | Polyurethane |
| FT | 1/8 Inch | 0.063 Inch | 0.03125 Inch | Gray | 125 PSI (9 bar) | Polyurethane |
| FT | 1/8 Inch | 0.063 Inch | 0.03125 Inch | Green | 125 PSI (9 bar) | Polyurethane |
| FT | 1/8 Inch | 0.063 Inch | 0.03125 Inch | Green | 125 PSI (9 bar) | Polyurethane |
| FT | 1/8 Inch | 0.063 Inch | 0.03125 Inch | Orange | 125 PSI (9 bar) | Polyurethane |
| FT | 1/8 Inch | 0.063 Inch | 0.03125 Inch | Red | 125 PSI (9 bar) | Polyurethane |
| FT | 1/8 Inch | 0.063 Inch | 0.03125 Inch | Red | 125 PSI (9 bar) | Polyurethane |
| FT | 1/8 Inch | 0.063 Inch | 0.03125 Inch | Blue | 125 PSI (9 bar) | Polyurethane |
| FT | 1/8 Inch | 0.063 Inch | 0.03125 Inch | Blue | 125 PSI (9 bar) | Polyurethane |
| FT | 1/8 Inch | 0.063 Inch | 0.03125 Inch | Yellow | 125 PSI (9 bar) | Polyurethane |
| FT | 1/8 Inch | 0.063 Inch | 0.03125 Inch | Yellow | 125 PSI (9 bar) | Polyurethane |
| FT | 3/16 Inch | 0.125 Inch | 0.03125 Inch | Natural | 125 PSI (9 bar) | Polyurethane |
Parker Parflex Series U Is A Strong, Kink And Abrasion Resistant Polyurethane Tubing. The Tubing Is Available In Eight Colors And Has A Wide Variety Applications. Typical Usage Includes Air Tools, Robotics, Analytical Instrumentation, Pneumatic Logic And Actuation Systems.
