SHOP Tubing
Parker tubing from Parflex Division is available in a very wide variety of materials, colors in inch and metric sizes. Nylon, polyethylene, polypropylene, polyurethane, urethane and vinyl to name a few. A perfect match for Parker's Prestolok push-to-connect instant tubing fittings and valves.
Narrow Your Results
SELECTED FILTERS
Manually Selectedclear all
Automatically Selected
| » | Trade Name: Parflex |
| » | Series: HUM |
| » | Material: Polyurethane |
| » | Max Pressure Range: 100 to 249 PSI (7 to 17 bar) |
| » | Inch/Metric: Metric |
| » | Distinct Properties: High Durometer |
| » | Application: Pneumatic |
| » | Inner Diameter Inch/mm: mm |
| » | Outer Diameter Inch/mm: mm |
| » | Parker Division: Parflex |
| » | Wall Thickness Inch/mm: mm |
Click Image to Zoom
*Product image is representative provided by the manufacturer. Do not make buying decisions soley based on the image. Please verify specifications meet your requirements.

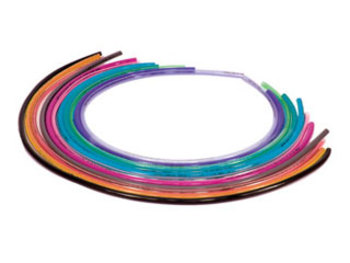

HUM Series Polyurethane
Parflex High Durometer PolyurethaneEmail this page to a friend
Recipient email address: Your name:
| UOM | Outer Diameter 1 | Inner Diameter | Wall Thickness | Color | Max Pressure | Material |
|---|---|---|---|---|---|---|
| FT | 10 mm | 6.5 mm | 1.75 mm | Natural | 177 PSI (12 bar) | Polyurethane |
| FT | 10 mm | 6.5 mm | 1.75 mm | Natural | 177 PSI (12 bar) | Polyurethane |
| FT | 10 mm | 6.5 mm | 1.75 mm | Black | 177 PSI (12 bar) | Polyurethane |
| FT | 10 mm | 6.5 mm | 1.75 mm | Black | 177 PSI (12 bar) | Polyurethane |
| FT | 10 mm | 6.5 mm | 1.75 mm | Blue | 177 PSI (12 bar) | Polyurethane |
| FT | 10 mm | 6.5 mm | 1.75 mm | Blue | 177 PSI (12 bar) | Polyurethane |
| FT | 10 mm | 6.5 mm | 1.75 mm | Green | 177 PSI (12 bar) | Polyurethane |
| FT | 10 mm | 6 mm | 2 mm | Red | 177 PSI (12 bar) | Polyurethane |
| FT | 12 mm | 8 mm | 2 mm | Natural | 177 PSI (12 bar) | Polyurethane |
| FT | 12 mm | 8 mm | 2 mm | Natural | 177 PSI (12 bar) | Polyurethane |
| FT | 12 mm | 8 mm | 2 mm | Black | 177 PSI (12 bar) | Polyurethane |
| FT | 12 mm | 8 mm | 2 mm | Black | 177 PSI (12 bar) | Polyurethane |
| FT | 12 mm | 8 mm | 2 mm | Blue | 177 PSI (12 bar) | Polyurethane |
| FT | 12 mm | 8 mm | 2 mm | Blue | 177 PSI (12 bar) | Polyurethane |
| FT | 12 mm | 8 mm | 2 mm | Green | 177 PSI (12 bar) | Polyurethane |
| FT | 12 mm | 10.4 mm | 0.8 mm | Red | 177 PSI (12 bar) | Polyurethane |
| FT | 4 mm | 2.4 mm | 0.8 mm | Natural | 177 PSI (12 bar) | Polyurethane |
| FT | 4 mm | 2.4 mm | 0.8 mm | Natural | 177 PSI (12 bar) | Polyurethane |
| FT | 4 mm | 2.4 mm | 0.8 mm | Black | 177 PSI (12 bar) | Polyurethane |
| FT | 4 mm | 2.4 mm | 0.8 mm | Black | 177 PSI (12 bar) | Polyurethane |
Parker Parflex Metric Series U Is A Strong, Kink And Abrasion Resistant High Density Polyurethane Tubing. The Tubing Is Available In Eight Colors And Has A Wide Variety Applications. Typical Usage Includes Air Tools, Robotics, Analytical Instrumentation, Pneumatic Logic And Actuation Systems.
