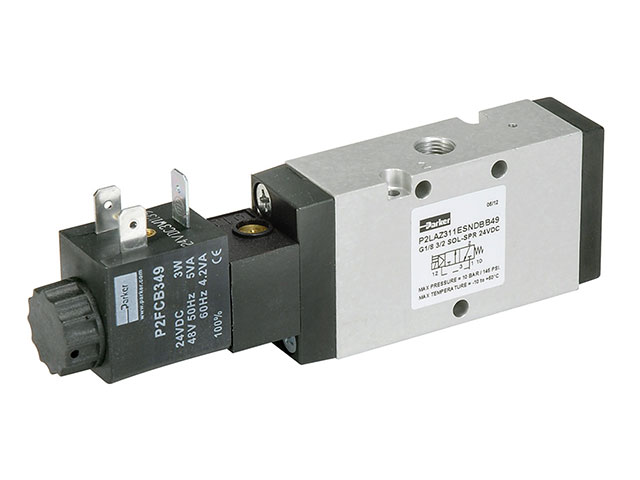

P2LBZ392ESNDBB53 Viking Lite Series Single Solenoid 3-way 2-position Valve

*Product image is representative provided by the manufacturer. Do not make buying decisions soley based on the image. Please verify specifications meet your requirements.

Viking Lite Series Single Solenoid 3-way 2-position Valve

Single Solenoid, 3-way, 2-position, Spring Return

Part #: P2LBZ392ESNDBB53	Manufacturer: Parker
Price/UOM: $69.09In Stock!	Out of stock, contact us for availability
	UOM: EA

Description:

Inline Solenoid operated (IP65, RoHS, CE) pneumatic valve with Parker's exclusive Wear Compensation System (WCS) spool seals. No lubrication required.

Email this page to a friend

Product Attributes

UOM:

Port:

1/4 NPT

CV Factor:

1.5

Operator Type Detail:

Single

Solenoid Voltage:

120VAC

Offset Return Type:

Spring Return

Pilot Supply:

Internal

Override Type:

Non-locking

Trade Name:

Viking Lite

Series:

Viking Lite

Pneumatic Valve Type:

Inline Valve

Port Inch/BSP:

NPT

Valve Passages:

3-way

Valve Positions:

2-position

Operator Type:

Solenoid

Solenoid Connection:

22mm Rectangular 3-Pin – Type B Industrial (Use with Enclosure “B”)

Supply Pressure Range:

43.5 to 145 PSIG (3 to 10 bar)

Parker Group:

Automation

Parker Division:

Pneumatic

Operating Temperature:

14°F to 122°F (-10°C to 50°C)
