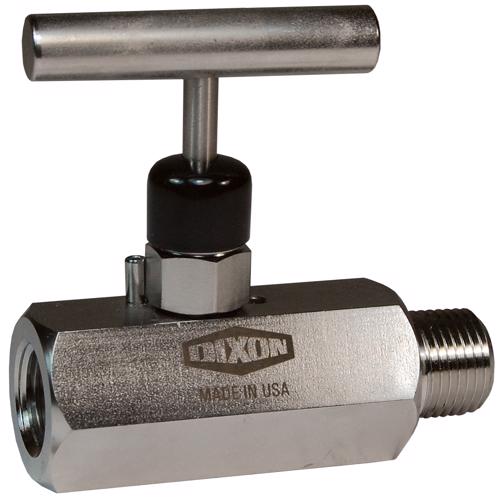

Mini Needle Valve Male to Female
Mini Needle Valve Male to Female| Part #: MFS101 | Manufacturer: Dixon |
| Out of stock, contact us for availability | |
| UOM: EA |
| Description: |
Features: • reduces the number of gauge and other instrument connections to permanent piping installations, decreasing possible leak paths • FKM O-ring seal and PTFE back-up ring below the threads protects from corrosion and galling • stem threads are rolled for strength and ease of operation • metal-to-metal hard seat design is 100% helium leak tested to 1 x 10-4 ml/s at 200 PSI • ½" female NPT port • orifice size is 0.187", flow coefficient: 0.44 • all stems are 316 stainless steel
|
Product Attributes
|
|
