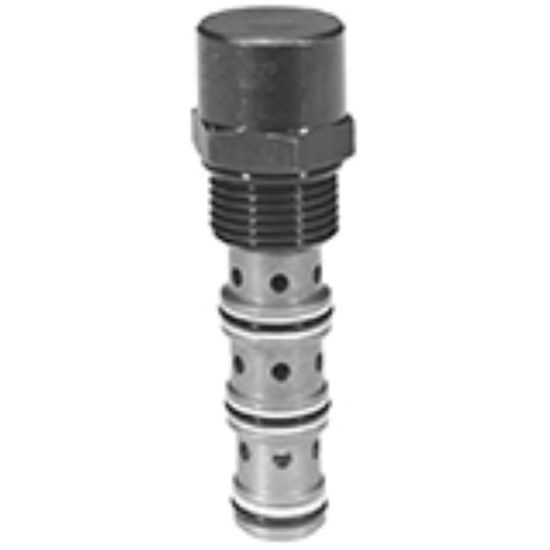

Priority Pressure Compensators - FCP101F08V

Name: Priority Pressure Compensators - FCP101F08V
SKU: FCP101F08V
Availability: OutOfStock

REGIONAL - Parker’s priority pressure compensators provide constant flow regardless of pressure changes via a fixed or adjustable orifice with priority to one outlet port at flows up to 95 lpm (25 gpm) and pressures up to 380 bar (5500 psi).

Availability:

Backordered

SKU: FCP101F08V

Qty:

Products specifications

Attribute name	Attribute value
Actuation Type	Pressure Compensation	Maximum Inlet Pressure Rating	245 bar
Maximum Operating Pressure	3500 psi	Flow Rate Accuracy	10%
Maximum Priority Flow	10 Gal/min	Flow Rate	15 Gal/min
Division	Hydraulic Cartridge Systems Division	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Weight	0.3 lb	Adjustment Mechanism	Fixed
Seal Material	Fluorocarbon	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Minimum Operating Temperature	-15 °F	Division	Hydraulic Systems Division
Cavity Size	C10-4	Operating Temperature	-26 to +204 °C
Pressure Differential	80 psi	Maximum Flow Rate	56 L/min
Function	Priority Pressure Compensators	Body Material	n/a
Maximum Operating Temperature	+204 °C	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Installation Torque	22 Nm	Valve Material	All parts steel. All operating parts hardened steel
Pressure Differential	80 PSI, 5.5 BAR	Seal Material	Fluorocarbon
Maximum Flow Rate	15 GAL/MIN, 56 L/MIN	Maximum Priority Flow	10 GAL/MIN, 38 L/MIN
