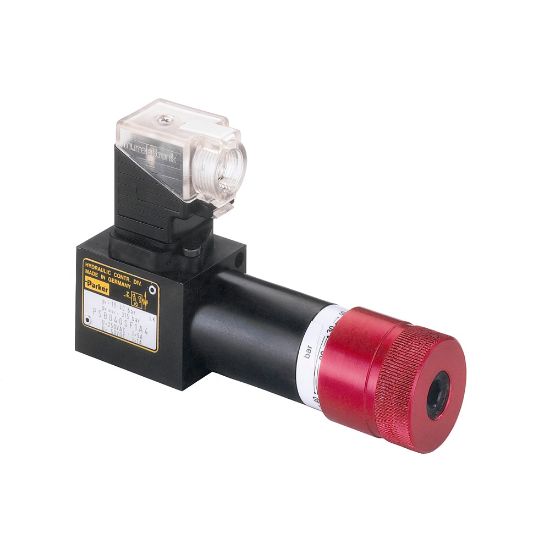

Pressure Switch - Series PSB - PSB160AV11

Name: Pressure Switch - Series PSB - PSB160AV11
SKU: PSB160AV11
Availability: OutOfStock

Electro-hydraulic pressure switches series PSB are robust, long-life high performance devices that provide an electrical signal when sensed pressure rises above or falls below the selected setting. The maximum operating pressure is 315 bar.

Availability:

Backordered

SKU: PSB160AV11

Qty:

Products specifications

Attribute name	Attribute value
Actuation Type	Electro-hydraulically	Seal Material	FPM
Maximum Flow Rate	n/a	Mounting Type	Pipe Mounting
Body Material	Steel	Mounting Position	Unrestricted
Maximum Operating Pressure	315 bar	Maximum Operating Temperature	60 °C
Minimum Operating Temperature	-20 °C	Duty Cycle	Max. 1/s
Weight	1 kg	Product Series	Pressure switch
Division	Hydraulic Valve Systems Division Europe
Pressure Adjustment Control Type	Hexagon socket	Pressure Range (bar)	10-160
Switching Pressure	10 to 160 bar	Connection	Fitting
Adjustment Type	Manual switching point	Seal Material	FPM
Locking Mechanism	na	Connection Type	Fitting, front face, tube Ø6

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

CERTIFICATE - DIN ISO 9001:2015 Certificate ISDE
