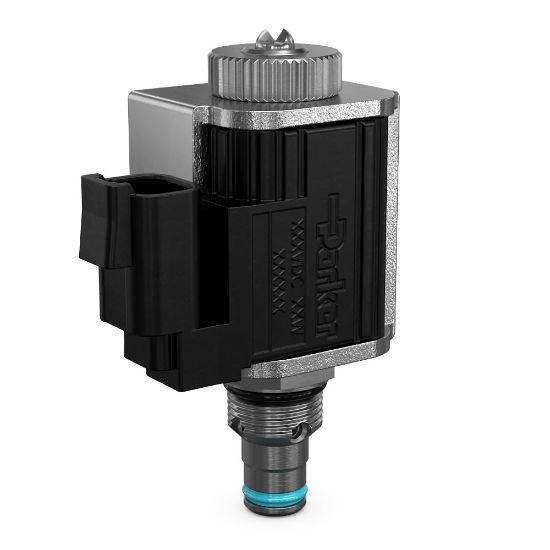

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Pressure Relieving Proportional Valve - AP02B2YR21AL

Name: Pressure Relieving Proportional Valve - AP02B2YR21AL
SKU: AP02B2YR21AL
Availability: OutOfStock

Parker’s selection of proportional pressure relieving valves are for applications that require dynamic relieving and valves that are capable of flows up to 95 lpm (25 gpm) and pressures as high as 350 bar (5000 psi).

Availability:

Backordered

SKU: AP02B2YR21AL

Qty:

Products specifications

Attribute name	Attribute value
Weight	0.19 lb	Operation Type	Solenoid Operated
Hysteresis	< 10 %	Minimum Operating Temperature	-37 °C
Maximum Inlet Pressure Rating	5000 psi	Division	Hydraulic Cartridge Systems Division
Installation Torque	22 lb-ft	For Fluid Type	Mineral-based Hydraulic Fluids
Body Material	n/a	Configuration	Decreasing Pressure/Increasing Current
Power Consumption	28 W	Maximum Operating Pressure	3000 psi
Maximum Operating Temperature	200 °F	Operating Temperature	-37 to 93 °C
Valve Material	Steel	Division	Hydraulic Systems Division
Cracking Pressure	3 psi	Pressure Control Range	n/a
Maximum Flow Rate	1.4 Gal/min	Leak Rate	10
Mounting Type	Screw-in Cartridge	Cavity Size	C08-2
Coil Nut Tightening Torque	Finger Tight	Frequency	100 to 400 Hz
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Maximum Relief Pressure	210 bar
Maximum Pressure Setting	n/a	Coil Type	5/8" Super Coil High Watt (CAP)
Actuation Type	Electrical	Function	Proportional Pressure Relief
Filter Efficiency Rating	SAE Class 4	Flow Direction	Nose to Side (1-2)
Flow Rate	1.4 Gal/min	Seal Material	D-Ring (Standard)
Seal Material	D-Ring (Standard)	Maximum Relief Pressure	3000 PSI, 210 BAR
Flow Rate	0.8 GAL/MIN, 3 L/MIN	Configuration	Decreasing Pressure/Increasing Current
