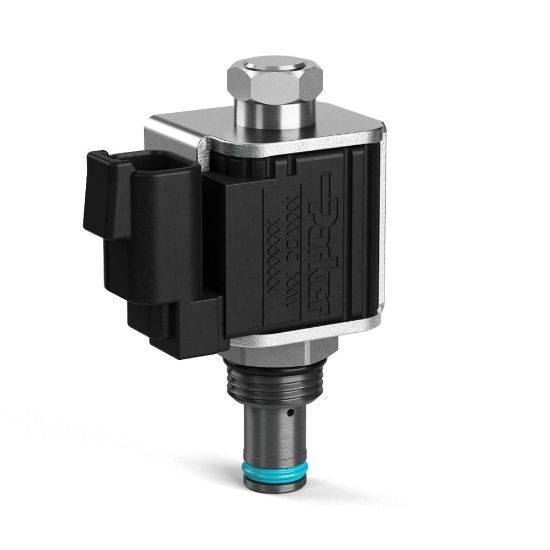

Pressure Relieving Proportional Valve - AP02B2YP14C

Name: Pressure Relieving Proportional Valve - AP02B2YP14C
SKU: AP02B2YP14C
Availability: OutOfStock

Parker’s selection of proportional pressure relieving valves are for applications that require dynamic relieving and valves that are capable of flows up to 95 lpm (25 gpm) and pressures as high as 350 bar (5000 psi).

Availability:

Backordered

SKU: AP02B2YP14C

Qty:

Products specifications

Attribute name	Attribute value
Operation Type	Solenoid Operated	Power Consumption	19 W
Installation Torque	22 lb-ft	Body Material	n/a
Maximum Operating Pressure	2000 psi	Maximum Relief Pressure	2000 psi
Coil Type	1/2" Super Coil High Watt (CCP)	Division	Hydraulic Systems Division
Hysteresis	5 %	Configuration	Increasing Pressure/Increasing Current
Pressure Control Range	n/a	For Fluid Type	Synthetic Hydraulic Fluids
Weight	0.14 lb	Mounting Type	Screw-in Cartridge
Cavity Size	C08-2	Frequency	100 to 400 Hz
Operating Temperature	-35 to 200 °F	Coil Nut Tightening Torque	3 lb-ft
Maximum Pressure Setting	n/a	Valve Material	Hardened Steel
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Cracking Pressure	0.14 bar
Minimum Operating Temperature	-35 °F	Actuation Type	Electrical
Filter Efficiency Rating	SAE Class 4	Function	Proportional Pressure Relief
Flow Rate	1.4 Gal/min	Maximum Flow Rate	5.3 L/min
Seal Material	D-Ring (Standard)	Division	Hydraulic Cartridge Systems Division
Maximum Inlet Pressure Rating	5000 psi	Flow Direction	Nose to Side (1-2)
Leak Rate	30	Maximum Operating Temperature	93 °C
Flow Rate	0.9 GAL/MIN, 3.4 L/MIN	Maximum Relief Pressure	2000 PSI, 140 BAR
Configuration	Increasing Pressure/Increasing Current	Seal Material	D-Ring (Standard)
