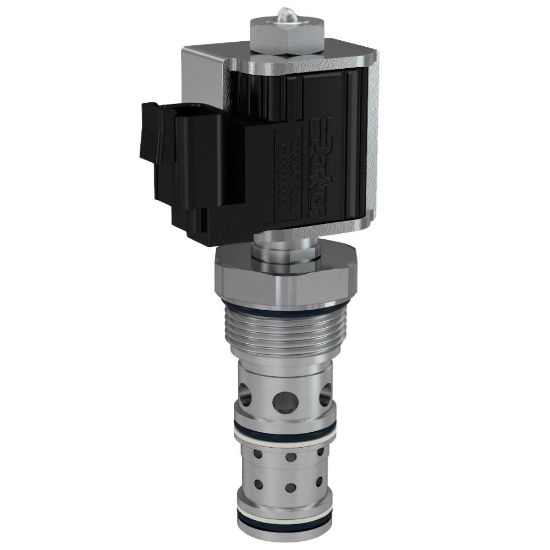

Pressure Compensated Proportional Poppet Valves - FAPC161CN

Name: Pressure Compensated Proportional Poppet Valves - FAPC161CN
SKU: FAPC161CN
Availability: OutOfStock

Parker’s family of 2-way proportional poppet valves are available normally-open or normally-closed with a standard integrated pressure compensator; capable of flows up to 83 lpm (22 gpm) and pressures as high as 210 bar (3000 psi).

Availability:

Backordered

SKU: FAPC161CN

Qty:

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	210 bar	Connection Size	n/a
Connection Type	n/a	Seal Material	Nitrile
Body Material	n/a	Division	Hydraulic Cartridge Systems Division
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Division	Hydraulic Systems Division
Minimum Operating Temperature	-34 °C	Actuation Type	Electrical
Operation Type	Solenoid Operated	Coil Nut Tightening Torque	3 lb-ft
Cavity Size	C16-3	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Operating Temperature	+250 °F	Frequency	100-400 Hz
Configuration	Normally Closed	Valve Material	All parts steel. All operating parts hardened steel
Operating Temperature	-30 to +250 °F	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Maximum Inlet Pressure Rating	210 bar	Leak Rate	5 @ 3000 PSI (210 BAR) drops/min
Function	Proportional Pressure Compensated Flow Control/Regulator	Flow Rate	83 L/min
Maximum Flow Rate	83 L/min	Weight	1.08 lb
Installation Torque	80-85 lb-ft	Coil Type	5/8" Super Coil Low Watt (CAS)
Hysteresis	< 10%	Flow Direction	Top to Side (3 - 2)
Power Consumption	18 W	Minimum Pressure Differential	34 bar
Current	Max: 1.5 @ 12 VDC, 0.75 @ 24 VDC A
Seal Material	Nitrile	Configuration	Normally Closed
Maximum Flow Rate	22 GAL/MIN, 83 L/MIN
