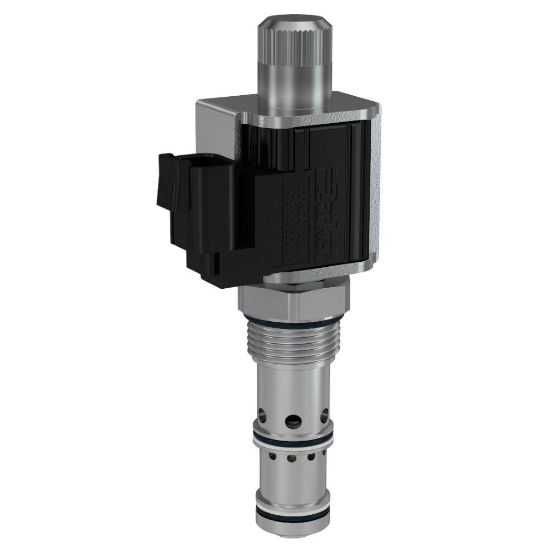

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Pressure Compensated Proportional Poppet Valves - FAPC121NN

Name: Pressure Compensated Proportional Poppet Valves - FAPC121NN
SKU: FAPC121NN
Availability: OutOfStock

Parker’s family of 2-way proportional poppet valves are available normally-open or normally-closed with a standard integrated pressure compensator; capable of flows up to 83 lpm (22 gpm) and pressures as high as 210 bar (3000 psi).

Availability:

Backordered

SKU: FAPC121NN

Qty:

Products specifications

Attribute name	Attribute value
Connection Size	n/a	Connection Type	n/a
Seal Material	Nitrile	Maximum Operating Pressure	3000 psi
Body Material	n/a	Division	Hydraulic Cartridge Systems Division
Maximum Flow Rate	57 L/min	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Division	Hydraulic Systems Division	Flow Rate	15 Gal/min
Minimum Operating Temperature	-30 °F	Weight	0.36 kg
Actuation Type	Electrical	Operation Type	Solenoid Operated
Cavity Size	C12-3L	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Operating Temperature	+121 °C	Frequency	100-400 Hz
Configuration	Normally Open	Valve Material	All parts steel. All operating parts hardened steel
Operating Temperature	-30 to +250 °F	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Maximum Inlet Pressure Rating	210 bar	Leak Rate	5 @ 3000 PSI (210 BAR) drops/min
Function	Proportional Pressure Compensated Flow Control/Regulator	Installation Torque	48 Nm
Coil Type	5/8" Super Coil Low Watt (CAS)	Hysteresis	< 10%
Flow Direction	Top to Side (3 - 2)	Power Consumption	18 W
Coil Nut Tightening Torque	Finger Tight Nm	Minimum Pressure Differential	34 bar
Current	Max: 1.5 @ 12 VDC, 0.75 @ 24 VDC A
Seal Material	Nitrile	Maximum Flow Rate	15 GAL/MIN, 57 L/MIN
Configuration	Normally Open
