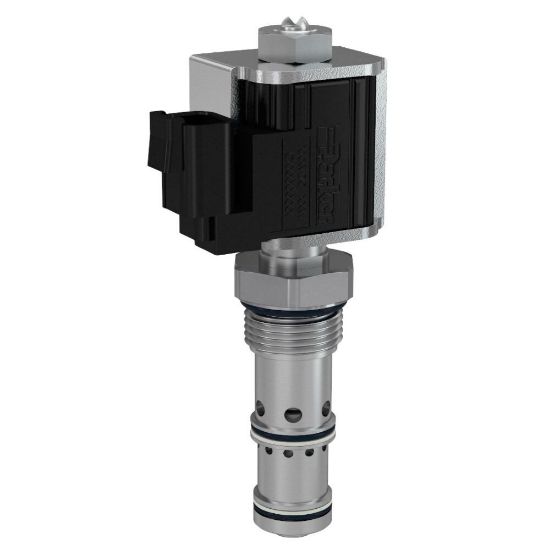

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Pressure Compensated Proportional Poppet Valves - FAPC121CN

Name: Pressure Compensated Proportional Poppet Valves - FAPC121CN
SKU: FAPC121CN
Availability: OutOfStock

Parker’s family of 2-way proportional poppet valves are available normally-open or normally-closed with a standard integrated pressure compensator; capable of flows up to 83 lpm (22 gpm) and pressures as high as 210 bar (3000 psi).

Availability:

Backordered

SKU: FAPC121CN

Qty:

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	210 bar	Connection Size	n/a
Connection Type	n/a	Seal Material	Nitrile
Body Material	n/a	Division	Hydraulic Cartridge Systems Division
Maximum Flow Rate	57 L/min	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Division	Hydraulic Systems Division	Flow Rate	57 L/min
Minimum Operating Temperature	-34 °C	Maximum Inlet Pressure Rating	3000 psi
Actuation Type	Electrical	Operation Type	Solenoid Operated
Coil Nut Tightening Torque	4.1 Nm	Cavity Size	C12-3L
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Operating Temperature	+250 °F
Frequency	100-400 Hz	Configuration	Normally Closed
Valve Material	All parts steel. All operating parts hardened steel	Operating Temperature	-30 to +250 °F
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Leak Rate	5 @ 3000 PSI (210 BAR) drops/min
Function	Proportional Pressure Compensated Flow Control/Regulator	Weight	0.79 lb
Installation Torque	48 Nm	Coil Type	5/8" Super Coil Low Watt (CAS)
Hysteresis	< 10%	Flow Direction	Top to Side (3 - 2)
Power Consumption	18 W	Minimum Pressure Differential	500 psi
Current	Max: 1.5 @ 12 VDC, 0.75 @ 24 VDC A
Seal Material	Nitrile	Maximum Flow Rate	15 GAL/MIN, 57 L/MIN
Configuration	Normally Closed
