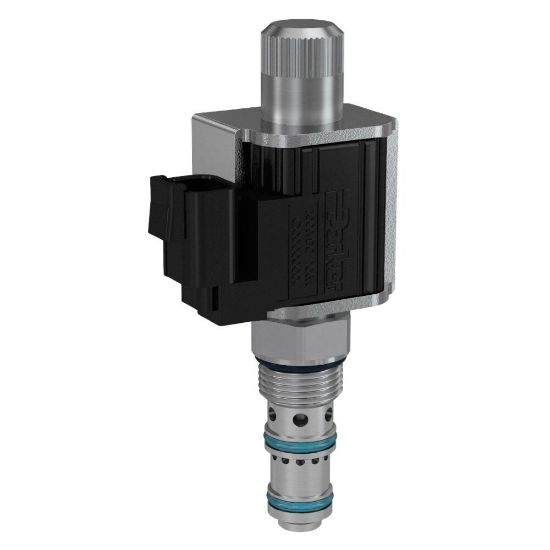

Pressure Compensated Proportional Poppet Valves - FAPC101N

Name: Pressure Compensated Proportional Poppet Valves - FAPC101N
SKU: FAPC101N
Availability: OutOfStock

Parker’s family of 2-way proportional poppet valves are available normally-open or normally-closed with a standard integrated pressure compensator; capable of flows up to 83 lpm (22 gpm) and pressures as high as 210 bar (3000 psi).

Availability:

Backordered

SKU: FAPC101N

Qty:

Products specifications

Attribute name	Attribute value
Connection Size	n/a	Connection Type	n/a
Maximum Operating Pressure	3000 psi	Body Material	n/a
Division	Hydraulic Cartridge Systems Division	Minimum Operating Temperature	-37 °C
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Division	Hydraulic Systems Division
Weight	0.24 kg	Flow Rate	10 Gal/min
Actuation Type	Electrical	Operation Type	Solenoid Operated
Installation Torque	25 lb-ft	Maximum Flow Rate	38 L/min
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Frequency	100-400 Hz
Configuration	Normally Open	Valve Material	All parts steel. All operating parts hardened steel
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Maximum Inlet Pressure Rating	210 bar
Leak Rate	5 @ 3000 PSI (210 BAR) drops/min	Operating Temperature	-35 to +200 °F
Maximum Operating Temperature	+93 °C	Seal Material	D-Ring
Function	Proportional Pressure Compensated Flow Control/Regulator	Cavity Size	3X
Coil Type	5/8" Super Coil Low Watt (CAS)	Hysteresis	< 10%
Flow Direction	Top to Side (3 - 2)	Power Consumption	18 W
Coil Nut Tightening Torque	Finger Tight Nm	Minimum Pressure Differential	34 bar
Current	Max: 1.5 @ 12 VDC, 0.75 @ 24 VDC A
Configuration	Normally Open	Maximum Flow Rate	10 GAL/MIN, 38 L/MIN
Seal Material	D-Ring
