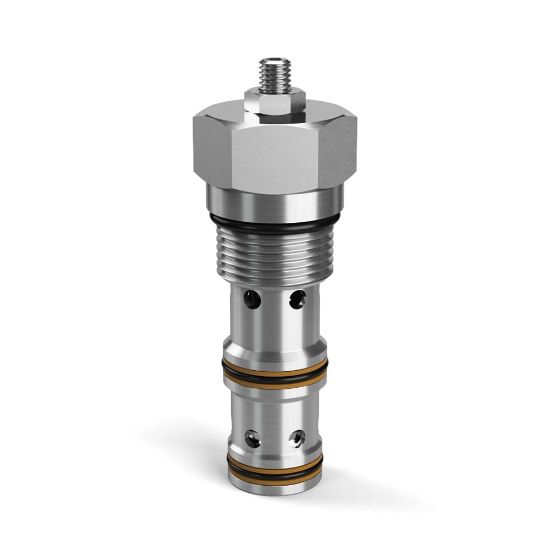

Pressure Compensated Priority Flow Control Valves - J1A125TN

Name: Pressure Compensated Priority Flow Control Valves - J1A125TN
SKU: J1A125TN
Availability: OutOfStock

Pressure compensated priority flow control valves maintain constant flow regardless of changes to inlet pressure for flows up to 90 lpm (24 gpm) and pressures up to 420 bar (6000 psi); excess flow is diverted once the priority flow requirement is met.

Availability:

Backordered

SKU: J1A125TN

Qty:

Products specifications

Attribute name	Attribute value
Connection Size	n/a	Connection Type	n/a
Seal Material	Nitrile	Body Material	n/a
Maximum Operating Pressure	5000 psi	Division	Hydraulic Cartridge Systems Division
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Weight	0.45 kg
Minimum Operating Temperature	-34 °C	Maximum Flow Rate	40 Gal/min
Division	Mobile Hydraulic Systems Division Europe	Adjustment Mechanism	Tamper Resistant
Maximum Inlet Pressure Rating	5000 psi	Flow Rate	40 Gal/min
Installation Torque	85 Nm	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Operating Temperature	+121 °C	Valve Material	All parts steel. All operating parts hardened steel
Flow Rate Accuracy	N/A	Operating Temperature	-30 to +250 °F
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Actuation Type	Pressure Compensated
Operation Type	Manually operated	Configuration	Priority Flow
Function	Flow Regulator Valve	Flow Rate Display Range	N/A L/min
Cavity Size	3A	Maximum Priority Flow	N/A L/min
Standard Flow Rate Setting	6.6 GAL/MIN@11.9 GAL/MIN Inlet Gal/min	Maximum Regulated Flow Rate	24 Gal/min
Seal Material	Nitrile	Adjustment Mechanism	Tamper Resistant
Flow Rate Display Range	N/A	Maximum Flow Rate	40 GAL/MIN,150 L/MIN
Standard Flow Rate Setting	6.6 GAL/MIN@11.9 GAL/MIN Inlet, 25 L/MIN@45 L/MIN Inlet
