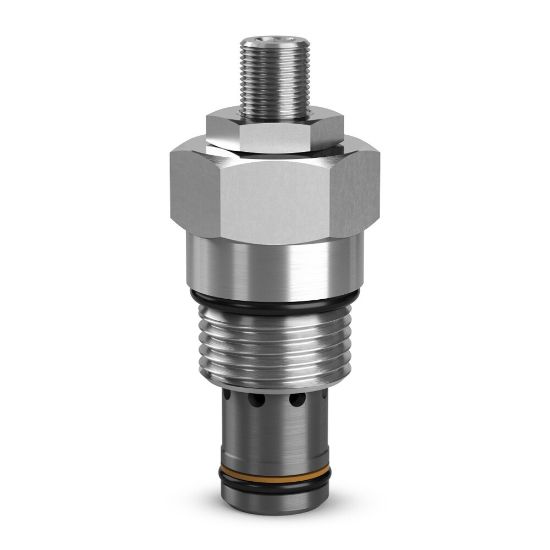

Pressure Compensated Flow Control Valves - J04C2WV

Name: Pressure Compensated Flow Control Valves - J04C2WV
SKU: J04C2WV
Availability: OutOfStock

Parker offers a wide range of pressure compensated flow controls for applications that demand constant flow with varying loads and pressures; handling pressures as high as 420 bar (6000 psi) and flows to 56 lpm (15 gpm) in a single common cavity.

Availability:

Backordered

SKU: J04C2WV

Qty:

Products specifications

Attribute name	Attribute value
Connection Size	n/a	Connection Type	n/a
Seal Material	Fluorocarbon	Maximum Operating Pressure	6000 psi
Body Material	n/a	Division	Hydraulic Cartridge Systems Division
Minimum Operating Temperature	-26 °C	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Weight	0.15 kg	Function	Flow Control
Division	Mobile Hydraulic Systems Division Europe	Cavity Size	C10-2
Installation Torque	37 lb-ft	Adjustment Mechanism	Knob
Maximum Inlet Pressure Rating	420 bar	Flow Rate	10.6 Gal/min
Maximum Flow Rate	10.6 Gal/min	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Operating Temperature	+400 °F	Valve Material	All parts steel. All operating parts hardened steel
Flow Rate Accuracy	N/A	Operating Temperature	-15 to +400 °F
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Actuation Type	Pressure Compensated
Operation Type	Manually operated	Configuration	Partial Reverse Flow
Flow Rate Display Range	1-40 L/min	Standard Flow Rate Setting	20 L/min
Seal Material	Fluorocarbon	Adjustment Mechanism	Knob
Configuration	Partial Reverse Flow	Maximum Flow Rate	10.6 GAL/MIN, 40 L/MIN
Flow Rate Display Range	0.3-10.6 GAL/MIN, 1-40 L/MIN	Standard Flow Rate Setting	5.3 GAL/MIN, 20 L/MIN
