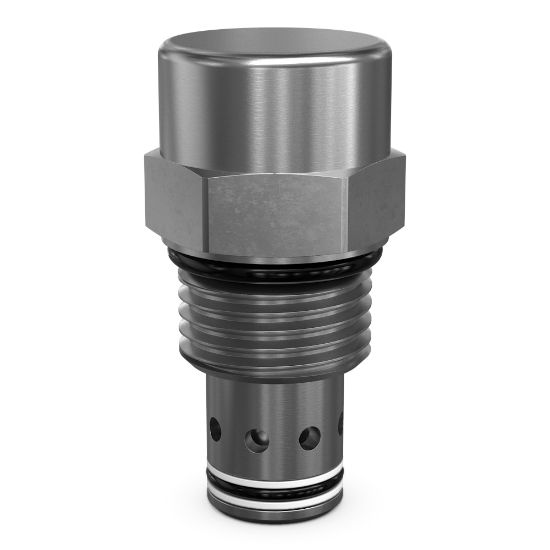

Pressure Compensated Flow Control Valves - FR101F500V

Name: Pressure Compensated Flow Control Valves - FR101F500V
SKU: FR101F500V
Availability: OutOfStock

Parker offers a wide range of pressure compensated flow controls for applications that demand constant flow with varying loads and pressures; handling pressures as high as 420 bar (6000 psi) and flows to 56 lpm (15 gpm) in a single common cavity.

Availability:

Backordered

SKU: FR101F500V

Qty:

Products specifications

Attribute name	Attribute value
Seal Material	Fluorocarbon	Function	Flow Control
Maximum Flow Rate	6 Gal/min	Actuation Type	Pressure Compensated
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Maximum Operating Pressure	245 bar
Cavity Size	C10-2	Maximum Inlet Pressure Rating	245 bar
Maximum Operating Temperature	+400 °F	Flow Rate Accuracy	10%
Weight	0.23 kg	Flow Rate	6 Gal/min
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Adjustment Mechanism	Fixed
Flow Rate Display Range	N/A Gal/min	Valve Material	All parts steel. All operating parts hardened steel
Minimum Operating Temperature	-15 °F	Division	Hydraulic Systems Division
Connection Type	n/a	Connection Size	n/a
Configuration	Partial Reverse Flow	Operation Type	Automatic
Operating Temperature	-15 to +400 °F	Division	Hydraulic Cartridge Systems Division
Installation Torque	16 (Aluminum), 48 (Steel) lb-ft	Standard Flow Rate Setting	18.8 L/min
Body Material	n/a	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Adjustment Mechanism	Fixed	Maximum Flow Rate	6 GAL/MIN, 22.5 L/MIN
Flow Rate Display Range	N/A	Configuration	Partial Reverse Flow
Seal Material	Fluorocarbon	Standard Flow Rate Setting	5 GAL/MIN, 18.8 L/MIN
