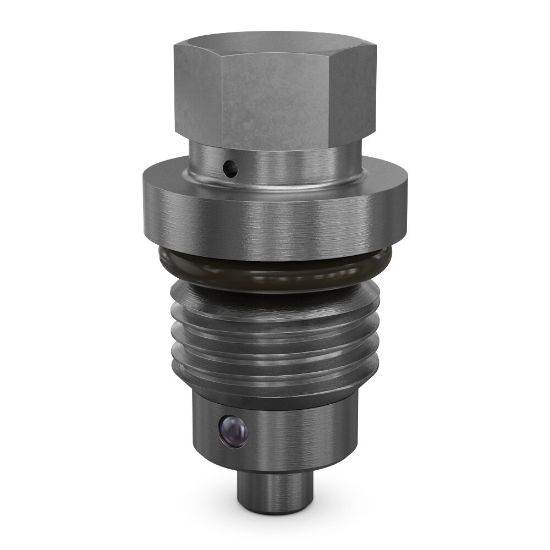

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Pressure Compensated Flow Control Valves - FR032030

Name: Pressure Compensated Flow Control Valves - FR032030
SKU: FR032030
Availability: OutOfStock

Parker offers a wide range of pressure compensated flow controls for applications that demand constant flow with varying loads and pressures; handling pressures as high as 420 bar (6000 psi) and flows to 56 lpm (15 gpm) in a single common cavity.

Availability:

Backordered

SKU: FR032030

Qty:

Products specifications

Attribute name	Attribute value
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Seal Material	Fluorocarbon
Function	Flow Control	Flow Rate Accuracy	15%
Maximum Inlet Pressure Rating	5000 psi	Division	Hydraulic Cartridge Systems Division
Flow Rate	0.3 Gal/min	Standard Flow Rate Setting	1.13 L/min
Cavity Size	ES10436	Operation Type	Automatic
Adjustment Mechanism	Tamper Resistant	Configuration	Insert
Maximum Operating Pressure	345 bar	Flow Rate Display Range	N/A Gal/min
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Actuation Type	Pressure Compensated
Valve Material	All parts steel. All operating parts hardened steel	Division	Hydraulic Systems Division
Connection Size	n/a	Operating Temperature	-26 to +204 °C
Maximum Flow Rate	1.13 L/min	Connection Type	n/a
Installation Torque	13 lb-ft	Weight	0.045 lb
Minimum Operating Temperature	-26 °C	Body Material	n/a
Maximum Operating Temperature	+204 °C	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Adjustment Mechanism	Fixed	Standard Flow Rate Setting	0.3 GAL/MIN, 1.13 L/MIN
Flow Rate Display Range	N/A	Configuration	Insert
Seal Material	Fluorocarbon	Maximum Flow Rate	0.3 GAL/MIN, 1.13 L/MIN
