*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

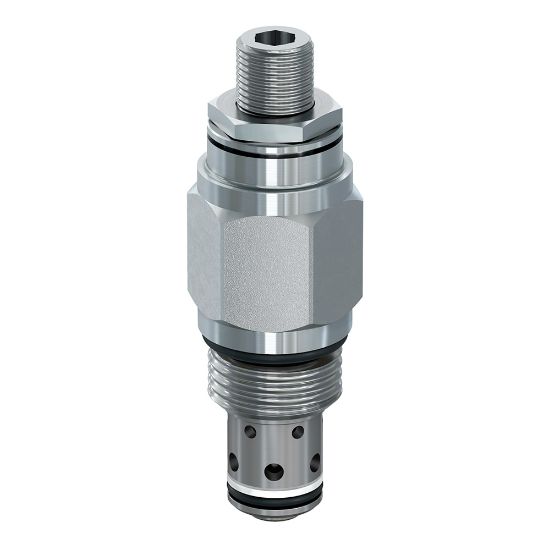

Pressure Compensated Flow Control Valves - FC101K600V

Name: Pressure Compensated Flow Control Valves - FC101K600V
SKU: FC101K600V
Availability: OutOfStock

Parker offers a wide range of pressure compensated flow controls for applications that demand constant flow with varying loads and pressures; handling pressures as high as 420 bar (6000 psi) and flows to 56 lpm (15 gpm) in a single common cavity.

Availability:

Backordered

SKU: FC101K600V

Qty:

Products specifications

Attribute name	Attribute value
Valve Material	All parts steel. All operating parts hardened steel	Flow Rate Display Range	4-8 Gal/min
Division	Hydraulic Systems Division	Configuration	Reverse Check
Operating Temperature	-26 to +204 °C	Connection Type	n/a
Connection Size	n/a	Weight	0.23 kg
Minimum Operating Temperature	-26 °C	Division	Hydraulic Cartridge Systems Division
Flow Rate	15 Gal/min	Installation Torque	22 Nm
Maximum Inlet Pressure Rating	3500 psi	Body Material	n/a
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Standard Flow Rate Setting	6 Gal/min
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Seal Material	Fluorocarbon
Actuation Type	Pressure Compensated	Function	Flow Control
Adjustment Mechanism	Knob	Maximum Operating Pressure	3500 psi
Cavity Size	C10-2	Maximum Operating Temperature	+400 °F
Maximum Flow Rate	15 Gal/min	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Operation Type	Manually operated	Flow Rate Accuracy	N/A
Seal Material	Fluorocarbon	Configuration	Reverse Check
Standard Flow Rate Setting	6 GAL/MIN, 22.5 L/MIN	Adjustment Mechanism	Knob
Flow Rate Display Range	4-8 GAL/MIN, 15-30 L/MIN	Maximum Flow Rate	15 GAL/MIN, 56 L/MIN
