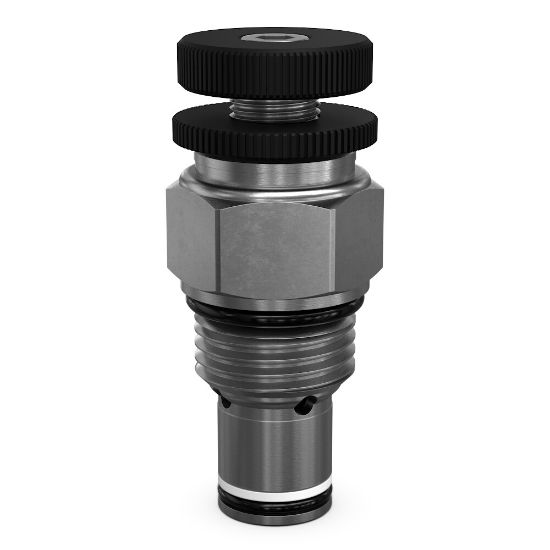

Pressure Compensated Flow Control Valves - FA101TV

Name: Pressure Compensated Flow Control Valves - FA101TV
SKU: FA101TV
Availability: OutOfStock

Parker offers a wide range of pressure compensated flow controls for applications that demand constant flow with varying loads and pressures; handling pressures as high as 420 bar (6000 psi) and flows to 56 lpm (15 gpm) in a single common cavity.

Availability:

Backordered

SKU: FA101TV

Qty:

Products specifications

Attribute name	Attribute value
Weight	0.23 kg	Connection Size	n/a
Connection Type	n/a	Maximum Operating Pressure	3000 psi
Seal Material	Fluorocarbon	Body Material	n/a
Division	Hydraulic Cartridge Systems Division	Minimum Operating Temperature	-26 °C
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Division	Hydraulic Systems Division
Function	Flow Control	Cavity Size	C10-2
Adjustment Mechanism	Tamper Resistant	Maximum Inlet Pressure Rating	3000 psi
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Operating Temperature	+400 °F
Valve Material	All parts steel. All operating parts hardened steel	Flow Rate Accuracy	N/A
Operating Temperature	-15 to +400 °F	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Maximum Flow Rate	5.5 Gal/min	Flow Rate	20.6 L/min
Configuration	Reverse Check	Actuation Type	Pressure Compensated
Operation Type	Manually operated	Installation Torque	16 (Aluminum), 48 (Steel) lb-ft
Flow Rate Display Range	0.2-5.5 Gal/min	Standard Flow Rate Setting	N/A L/min
Seal Material	Fluorocarbon	Adjustment Mechanism	Tamper Resistant
Configuration	Reverse Check	Maximum Flow Rate	5.5 GAL/MIN, 20.6 L/MIN
Flow Rate Display Range	0.2-5.5 GAL/MIN, 0.75-20.6 L/MIN	Standard Flow Rate Setting	N/A
