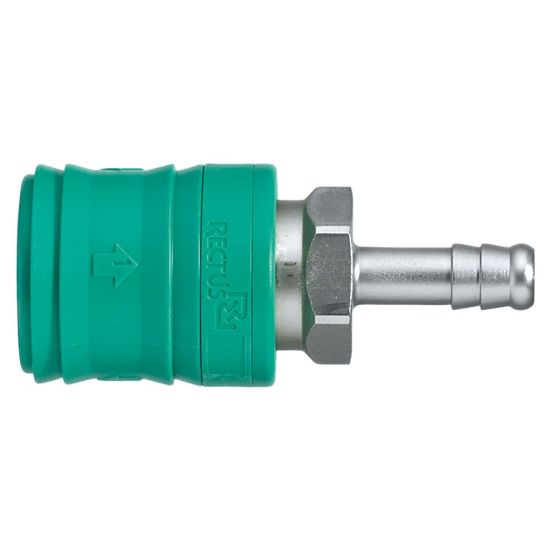

Premium Safety Quick Coupling with a Self-Venting System, Series 24 - 24KETF08MPN

Name: Premium Safety Quick Coupling with a Self-Venting System, Series 24 - 24KETF08MPN
SKU: 24KETF08MPN
Availability: OutOfStock

Premium self-venting quick coupling system with nominal diameter 5.5 for pneumatic applications up to 12 bar. Coupling system with ISO 6150 B profile. Available made of brass/steel.

Availability:

Backordered

SKU: 24KETF08MPN

Qty:

Products specifications

Attribute name	Attribute value
Outside Diameter	31 mm	Length	71 mm
Application	Pneumatic	Hex Size	22 mm
Minimum Operating Temperature	-20 °C	Maximum Operating Pressure	12 bar
Valve Included	Yes	Seal Material	NBR
Diameter	5,5 nom	Maximum Operating Temperature	60 °C
Safety Features	Self-Venting	Materials of Construction	Brass nickel plated
Division	Low Pressure Connectors Europe Division	Version	Self-Venting
Type	Coupling	Connection Type	Hose Barb
Hose I.D.	8	Connection Thread Size (inch)	na

Product resources

Compliance, Certifications & Safety

Certificate of conformity - 2014 68 EU_connectic

Literature and Reference Materials
