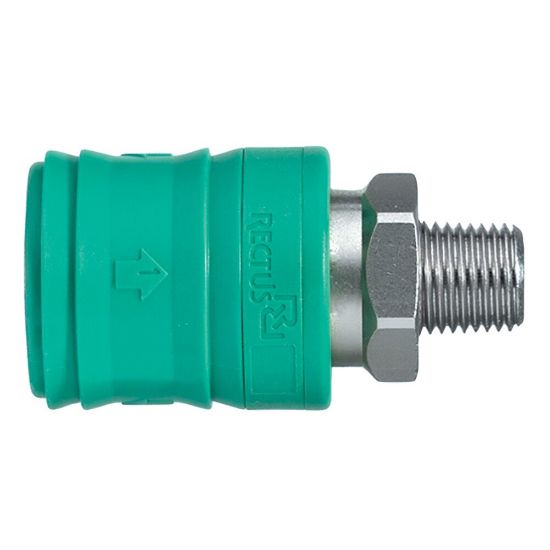

Premium Safety Quick Coupling with a Self-Venting System, Series 24 - 24KEAK21MPN

Name: Premium Safety Quick Coupling with a Self-Venting System, Series 24 - 24KEAK21MPN
SKU: 24KEAK21MPN
Availability: OutOfStock

Premium self-venting quick coupling system with nominal diameter 5.5 for pneumatic applications up to 12 bar. Coupling system with ISO 6150 B profile. Available made of brass/steel.

Availability:

Backordered

SKU: 24KEAK21MPN

Qty:

Products specifications

Attribute name	Attribute value
Safety Features	Self-Venting	Materials of Construction	Brass nickel plated
Length	63 mm	Hex Size	24 mm
Maximum Operating Pressure	12 bar	Minimum Operating Temperature	-20 °C
Outside Diameter	31 mm	Valve Included	Yes
Diameter	5,5 nom	Maximum Operating Temperature	60 °C
Application	Pneumatic	Division	Low Pressure Connectors Europe Division
Version	Self-Venting	Seal Material	NBR
Hose I.D.	na	Connection Thread Size (inch)	1/2
Connection Type	Male Thread - tapered	Type	Coupling
