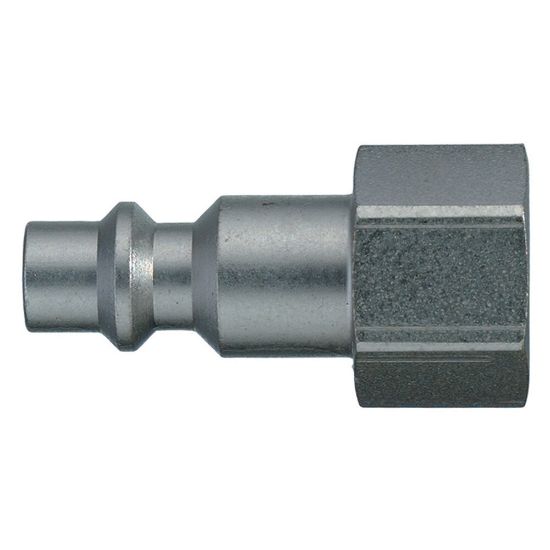

Premium Quick Coupling with ISO 6150 B Profile, Series 23 - 23SFIW21SXN

Name: Premium Quick Coupling with ISO 6150 B Profile, Series 23 - 23SFIW21SXN
SKU: 23SFIW21SXN
Availability: OutOfStock

Premium quick coupling system with nominal diameter 5.5 for pneumatic and fluid handling applications up to 35 bar. Coupling system with ISO 6150 B profile and according to US MIL-SPEC 4109. Available made of brass/steel.

Availability:

Backordered

SKU: 23SFIW21SXN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Quantity per Box	10
Division	Low Pressure Connectors Europe Division	Maximum Operating Temperature	100 °C
Weight	0.039 kg	Minimum Operating Temperature	-20 °C
Seal Material	na	Maximum Operating Pressure	35 bar
Version	Single Shut-Off	Valve Included	No
Diameter	5,5 nom	Outside Diameter	na
Hex Size	24 mm	Flow Rate	900 L/min
Assembly Time	n/a Transair Piping Designer	Length	39 mm
Pipe Outside Diameter	76.0 mm Transair Piping Designer
Type	Plug	Hose I.D.	na
Connection Type	Female Thread - parallel	Connection Thread Size (inch)	1/2
Material	Steel nickel plated
