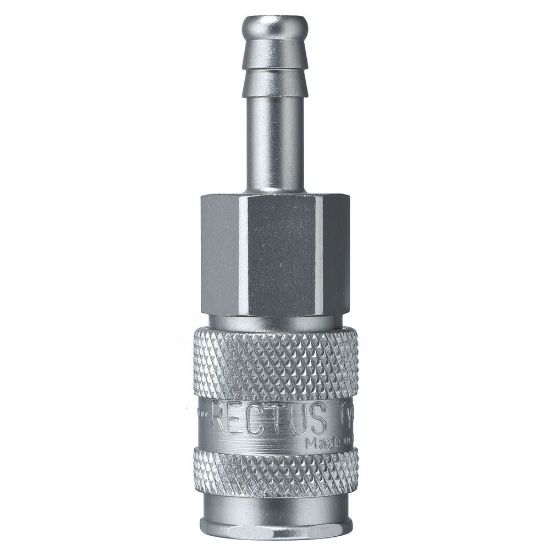

Industrial Interchange, High Flow, Quick Connect Air Couplings - Rectus 21, 23, 30 Series - 23KATF10MPN

Name: Industrial Interchange, High Flow, Quick Connect Air Couplings - Rectus 21, 23, 30 Series - 23KATF10MPN
SKU: 23KATF10MPN
Availability: OutOfStock

Parker's high flow, Industrial Interchange pneumatic, quick connect air couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Availability:

Backordered

SKU: 23KATF10MPN

Qty:

Products specifications

Attribute name	Attribute value
Sleeve Type	Push to Connect	Media	Compressed Air
Division	Quick Coupling Division	Application	High Flow
Lock Type	Locking balls	Seal Material	Nitrile
Division	Quick Coupling Division	Valve Type	Valved
Maximum Operating Temperature	212 °F	Minimum Operating Temperature	-4 °F
Maximum Operating Pressure	300 psi	Specifications Met	ISO 6150B
Plating Type	Nickel Plated	Fitting Connection Type	Hose Barb
Connection Type	Hose Barb	Hose I.D.	3/8"
Connection Thread Size	n/a	Thread Style	n/a
Coupling Half	Coupler	Body Size	1/4"
Body Material	Brass, Nickel-plated
