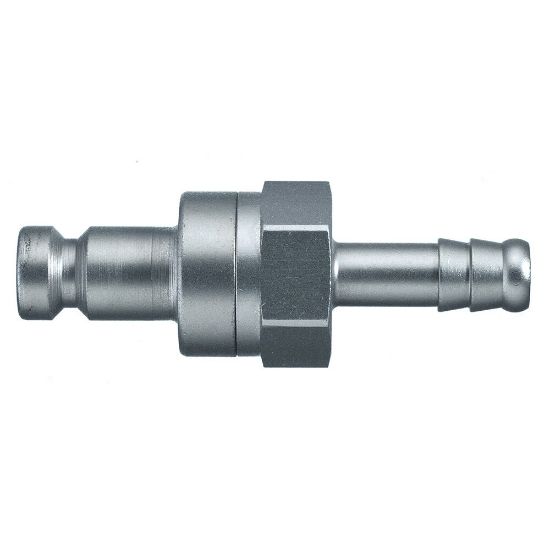

Premium Quick Coupling with German Profile, Series 52 - 52SBTF06SPN

Name: Premium Quick Coupling with German Profile, Series 52 - 52SBTF06SPN
SKU: 52SBTF06SPN
Availability: OutOfStock

Premium quick coupling system with nominal diameter 6 for pneumatic and fluid handling applications up to 50 bar. Coupling system with German industrial profile. Available made of brass/steel.

Availability:

Backordered

SKU: 52SBTF06SPN

Qty:

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-20 °C	Diameter	6 nom
Valve Included	Yes	Flow Rate	660 L/min
Outside Diameter	na	Maximum Operating Pressure	50 bar
Length	77,5 mm	Division	Low Pressure Connectors Europe Division
Hex Size	21 mm	Maximum Operating Temperature	100 °C
Seal Material	NBR
Material	Steel nickel plated	Hose I.D.	6
Type	Plug	Version	Double Shut-Off
Connection Thread Size (inch)	na	Connection Type	Hose Barb
