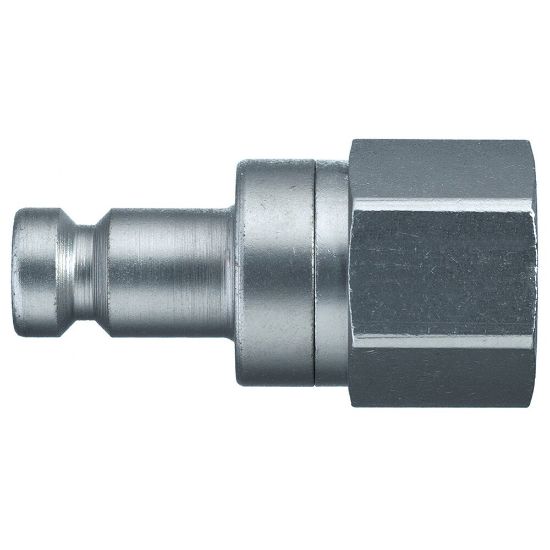

Premium Quick Coupling with German Profile, Series 52 - 52SBIW17SVN

Name: Premium Quick Coupling with German Profile, Series 52 - 52SBIW17SVN
SKU: 52SBIW17SVN
Availability: OutOfStock

Premium quick coupling system with nominal diameter 6 for pneumatic and fluid handling applications up to 50 bar. Coupling system with German industrial profile. Available made of brass/steel.

Availability:

Backordered

SKU: 52SBIW17SVN

Qty:

Products specifications

Attribute name	Attribute value
Hex Size	22 mm	Maximum Operating Pressure	50 bar
Seal Material	FKM	Outside Diameter	na
Valve Included	Yes	Diameter	6 nom
Flow Rate	660 L/min	Maximum Operating Temperature	200 °C
Minimum Operating Temperature	-15 °C	Length	48 mm
Division	Low Pressure Connectors Europe Division
Material	Steel nickel plated	Hose I.D.	na
Connection Type	Female Thread	Type	Plug
Version	Double Shut-Off
