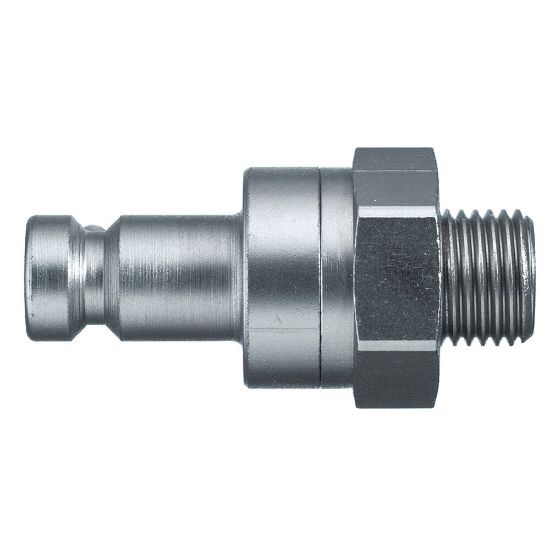

Premium Quick Coupling with German Profile, Series 52 - 52SBAW13SVN

Name: Premium Quick Coupling with German Profile, Series 52 - 52SBAW13SVN
SKU: 52SBAW13SVN
Availability: OutOfStock

Premium quick coupling system with nominal diameter 6 for pneumatic and fluid handling applications up to 50 bar. Coupling system with German industrial profile. Available made of brass/steel.

Availability:

Backordered

SKU: 52SBAW13SVN

Qty:

Products specifications

Attribute name	Attribute value
Seal Material	FKM	Flow Rate	730 (air)\|10 (water) L/min
Valve Included	Yes	Division	Low Pressure Connectors Europe Division
Diameter	6 (nominal)	Maximum Operating Temperature	200 °C
Length	48 mm	Minimum Operating Temperature	-15 °C
Outside Diameter	n/a mm	Maximum Operating Pressure	up to 50 bar
Hex Size	22 mm
Connection 2 Thread Size	G 1/4	Version	Double Shut-Off
Material	Steel	Type	Plug
Connection Type	Male BSPP	Hose I.D.	na
