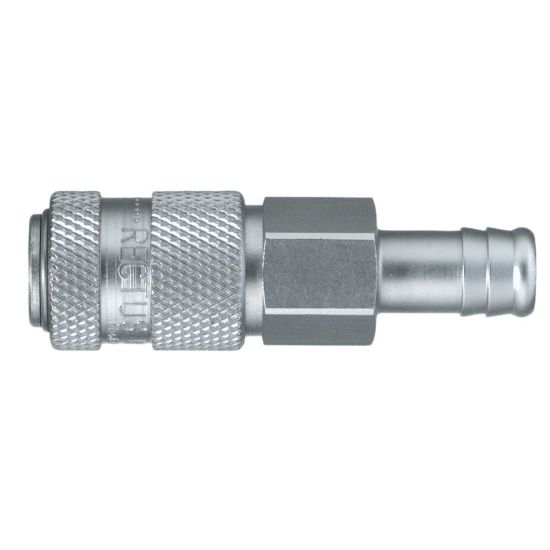

Premium Quick Coupling with German Profile, Series 52 - 52KBTF11SPN

Name: Premium Quick Coupling with German Profile, Series 52 - 52KBTF11SPN
SKU: 52KBTF11SPN
Availability: OutOfStock

Premium quick coupling system with nominal diameter 6 for pneumatic and fluid handling applications up to 50 bar. Coupling system with German industrial profile. Available made of brass/steel.

Availability:

Backordered

SKU: 52KBTF11SPN

Qty:

Products specifications

Attribute name	Attribute value
Length	80 mm	Maximum Operating Temperature	100 °C
Hex Size	21 mm	Division	Low Pressure Connectors Europe Division
Outside Diameter	25 mm	Seal Material	NBR
Valve Included	Yes	Diameter	6 nom
Minimum Operating Temperature	-20 °C	Flow Rate	660 L/min
Maximum Operating Pressure	50 bar
Version	Double Shut-Off	Connection Thread Size (inch)	na
Connection Type	Hose Barb	Hose I.D.	11
Type	Coupling	Material	Steel nickel plated
