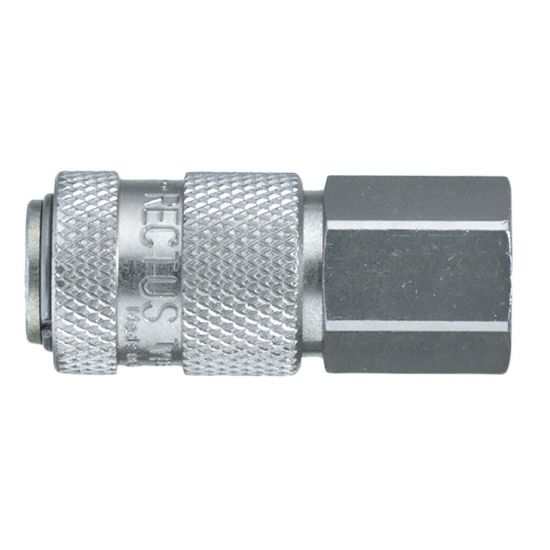

Premium Quick Coupling with German Profile, Series 52 - 52KBIW17SVN

Name: Premium Quick Coupling with German Profile, Series 52 - 52KBIW17SVN
SKU: 52KBIW17SVN
Availability: OutOfStock

Premium quick coupling system with nominal diameter 6 for pneumatic and fluid handling applications up to 50 bar. Coupling system with German industrial profile. Available made of brass/steel.

Availability:

Backordered

SKU: 52KBIW17SVN

Qty:

Products specifications

Attribute name	Attribute value
Outside Diameter	25 mm	Minimum Operating Temperature	-15 °C
Valve Included	Yes	Length	60 mm
Flow Rate	730 (air)\|10 (water) L/min	Maximum Operating Pressure	up to 50 bar
Hex Size	22 mm	Diameter	6 (nominal)
Seal Material	FKM	Division	Low Pressure Connectors Europe Division
Maximum Operating Temperature	200 °C
Type	Coupling	Connection 2 Thread Size	G 3/8
Hose I.D.	na	Connection Type	Female BSPP
Version	Double Shut-Off	Material	Steel
