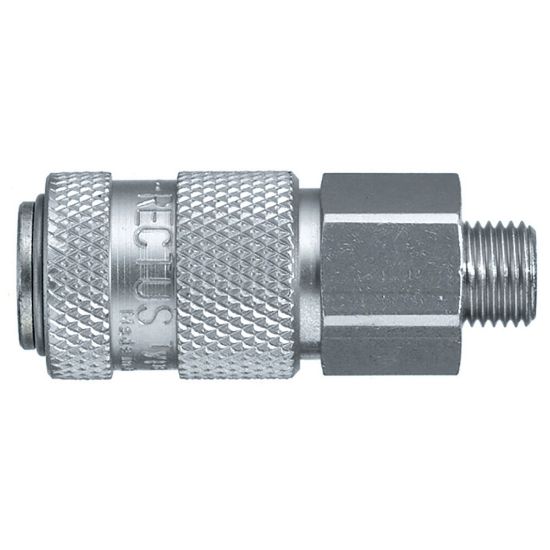

Premium Quick Coupling with German Profile, Series 52 - 52KBAW21SPN

Name: Premium Quick Coupling with German Profile, Series 52 - 52KBAW21SPN
SKU: 52KBAW21SPN
Availability: OutOfStock

Premium quick coupling system with nominal diameter 6 for pneumatic and fluid handling applications up to 50 bar. Coupling system with German industrial profile. Available made of brass/steel.

Availability:

Backordered

SKU: 52KBAW21SPN

Qty:

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	50 bar	Hex Size	22 mm
Outside Diameter	25 mm	Length	65 mm
Minimum Operating Temperature	-20 °C	Diameter	6 nom
Valve Included	Yes	Flow Rate	660 L/min
Seal Material	NBR	Division	Low Pressure Connectors Europe Division
Maximum Operating Temperature	100 °C
Material	Steel nickel plated	Type	Coupling
Connection Thread Size (inch)	1/2	Connection Type	Male Thread - parallel
Hose I.D.	na	Version	Double Shut-Off
