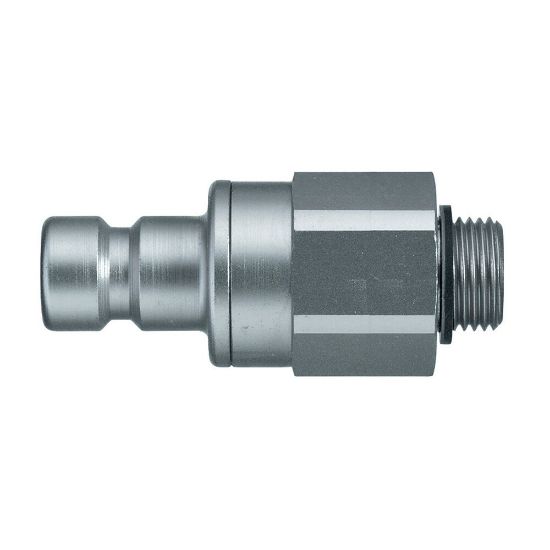

Premium Quick Coupling with German Industrial Profile, Series 57 - 57SBAW26MPN

Name: Premium Quick Coupling with German Industrial Profile, Series 57 - 57SBAW26MPN
SKU: 57SBAW26MPN
Availability: OutOfStock

Premium quick coupling system with nominal diameter 12 for pneumatic and fluid handling applications up to 35 bar. Coupling system with German industrial profile. Available made of brass/steel.

Availability:

Backordered

SKU: 57SBAW26MPN

Qty:

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	100 °C	Flow Rate	4295 L/min
Division	Low Pressure Connectors Europe Division	Diameter	12 nom
Seal Material	NBR	Valve Included	Yes
Minimum Operating Temperature	-20 °C	Hex Size	34 mm
Outside Diameter	na	Maximum Operating Pressure	35 bar
Version	Double Shut-Off
Type	Plug	Material	Brass - nickel plated
Connection Type	Male Thread - parallel	Connection Thread Size	3/4
Hose I.D.	na	Length (mm)	85
