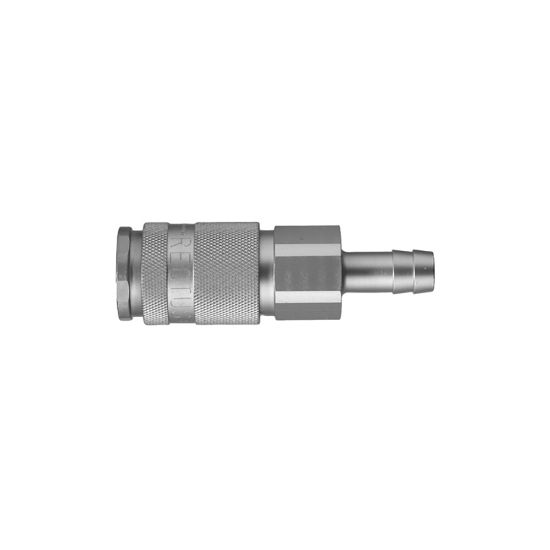

Premium Quick Coupling with German Industrial Profile, Series 57 - 57KBTF19BPN

Name: Premium Quick Coupling with German Industrial Profile, Series 57 - 57KBTF19BPN
SKU: 57KBTF19BPN
Availability: OutOfStock

Premium quick coupling system with nominal diameter 12 for pneumatic and fluid handling applications up to 35 bar. Coupling system with German industrial profile. Available made of brass/steel.

Availability:

Backordered

SKU: 57KBTF19BPN

Qty:

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	35 bar	Version	Double Shut-Off
Maximum Operating Temperature	100 °C	Division	Low Pressure Connectors Europe Division
Outside Diameter	40 mm	Diameter	12 nom
Flow Rate	4295 L/min	Seal Material	NBR
Valve Included	Yes	Minimum Operating Temperature	-20 °C
Hex Size	34 mm
Connection Thread Size	na	Hose I.D.	19
Connection Type	Hose Barb	Length (mm)	122
Material	Brass - nickel plated	Type	Coupling
