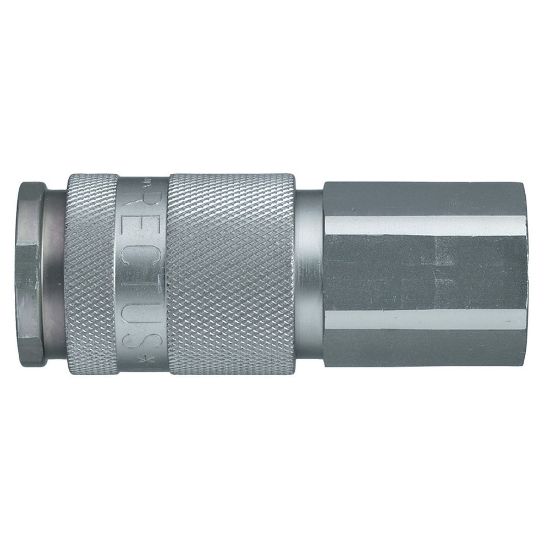

Premium Quick Coupling with German Industrial Profile, Series 57 - 57KBIW21BVN

Name: Premium Quick Coupling with German Industrial Profile, Series 57 - 57KBIW21BVN
SKU: 57KBIW21BVN
Availability: OutOfStock

Premium quick coupling system with nominal diameter 12 for pneumatic and fluid handling applications up to 35 bar. Coupling system with German industrial profile. Available made of brass/steel.

Availability:

Backordered

SKU: 57KBIW21BVN

Qty:

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-20 °C	Valve Included	Yes
Hex Size	34 mm	Maximum Operating Pressure	35 bar
Seal Material	FKM	Version	Double Shut-Off
Division	Low Pressure Connectors Europe Division	Flow Rate	4295 L/min
Maximum Operating Temperature	200 °C	Diameter	12 nom
Outside Diameter	40 mm
Material	Brass - nickel plated	Type	Coupling
Hose I.D.	na	Length (mm)	100
Connection Type	Female Thread - parallel	Connection Thread Size	1/2
