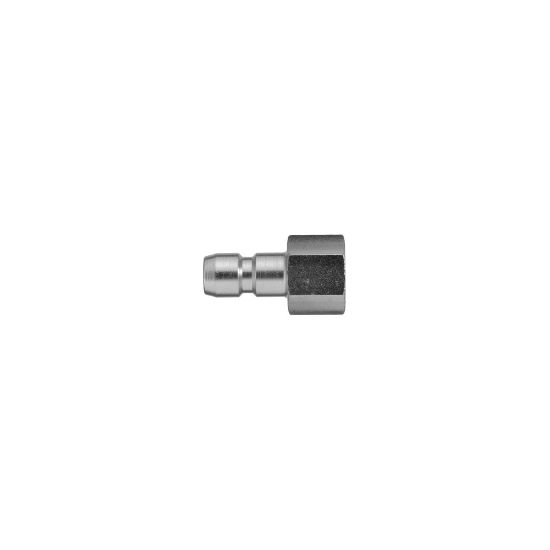

Premium Quick Coupling with German Industrial Profile, Series 51 - 51SFIW13SXN

Name: Premium Quick Coupling with German Industrial Profile, Series 51 - 51SFIW13SXN
SKU: 51SFIW13SXN
Availability: OutOfStock

Premium quick coupling system with nominal diameter 6 for pneumatic and fluid handling applications up to 50 bar. Coupling system with German industrial profile. Available made of brass/steel.

Availability:

Backordered

SKU: 51SFIW13SXN

Qty:

Products specifications

Attribute name	Attribute value
Valve Included	No	Maximum Operating Temperature	100 °C
Hex Size	17 mm	Length	34 mm
Minimum Operating Temperature	-20 °C	Diameter	6 nom
Outside Diameter	na	Maximum Operating Pressure	50 bar
Seal Material	na	Division	Low Pressure Connectors Europe Division
Flow Rate	800 L/min
Connection Thread Size (inch)	1/4	Material	Steel nickel plated
Hose I.D.	na	Version	Single Shut-Off
Type	Plug	Connection Type	Female Thread - parallel
