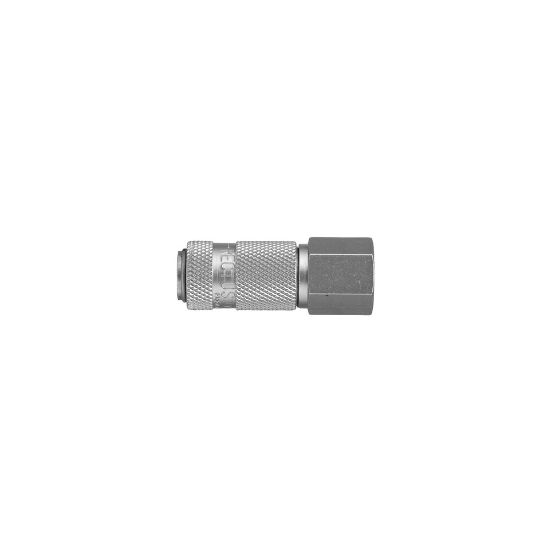

Premium Quick Coupling with German Industrial Profile, Series 51 - 51KBIW17SPN

Name: Premium Quick Coupling with German Industrial Profile, Series 51 - 51KBIW17SPN
SKU: 51KBIW17SPN
Availability: OutOfStock

Premium quick coupling system with nominal diameter 6 for pneumatic and fluid handling applications up to 50 bar. Coupling system with German industrial profile. Available made of brass/steel.

Availability:

Backordered

SKU: 51KBIW17SPN

Qty:

Products specifications

Attribute name	Attribute value
Outside Diameter	22 mm	Maximum Operating Temperature	100 °C
Division	Low Pressure Connectors Europe Division	Seal Material	NBR
Valve Included	Yes	Minimum Operating Temperature	-20 °C
Length	63 mm	Hex Size	22 mm
Flow Rate	660 L/min	Maximum Operating Pressure	50 bar
Diameter	6 nom
Connection Type	Female Thread - parallel	Connection Thread Size (inch)	3/8
Version	Double Shut-Off	Type	Coupling
Material	Steel nickel plated	Hose I.D.	na
