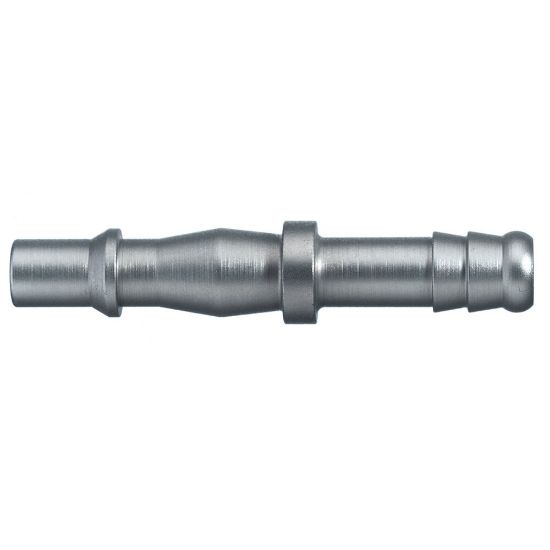

Premium Quick Coupling with English Industrial Profile, Series 19 - 19SFTF10SXN

Name: Premium Quick Coupling with English Industrial Profile, Series 19 - 19SFTF10SXN
SKU: 19SFTF10SXN
Availability: OutOfStock

Premium quick coupling with nominal diameter 5.5 for pneumatic and fluid handling applications up to 35 bar. Coupling system with English industrial profile. Available made of brass/steel.

Availability:

Backordered

SKU: 19SFTF10SXN

Qty:

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Maximum Operating Temperature	100 °C
Minimum Operating Temperature	-20 °C	Seal Material	na
Maximum Operating Pressure	35 bar	Version	Single Shut-Off
Hex Size	na	Valve Included	No
Length	60 mm	Diameter	5,5 nom
Materials of Construction	Steel nickel plated	Outside Diameter	12 mm
Flow Rate	660 L/min
Type	Plug	Connection Type	Hose Barb
Connection Thread Size (inch)	na	Hose I.D.	10
